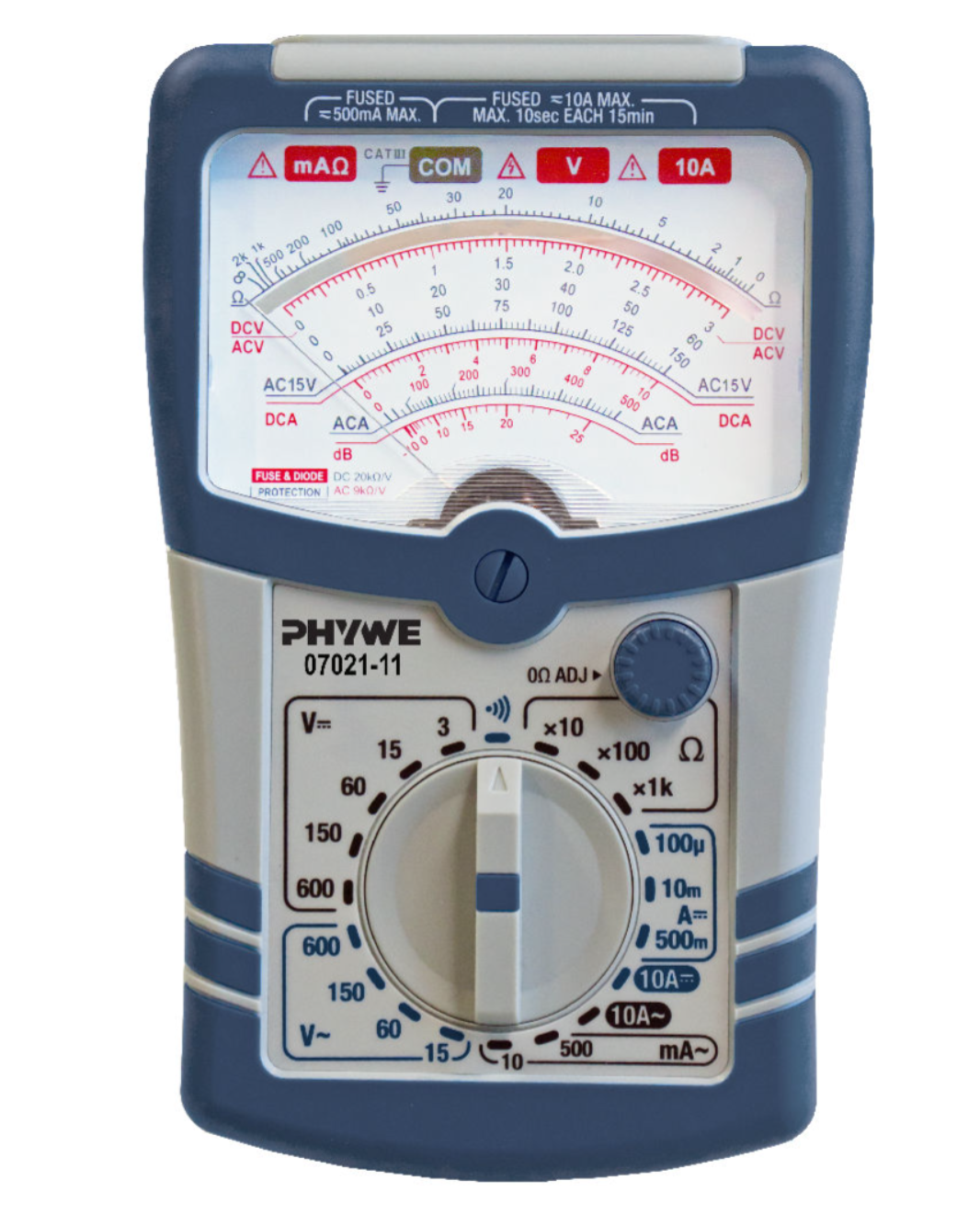

PHYWE Analog Multimeter, 600V AC/DC, 10A AC/DC, 2MΩ, Overload Protection

Functions and Applications: Wide-range analog multimeter with mirror scale, moving coil with point bearings and central range switch for easy operation. Safe thanks to ceramic fuses, so it is ideal for educational use. Benefits Virtually indestructible when used with PHYWE 13506-93 student power supply Non-critical range switching In case of malfunction, the user and the device are protected by protective trips. Equipment and technical data DC voltage: 3/15/60/150/600 V AC voltage: 15/60/150/600 V DC current: 100 µA/10 mA/500 mA/10 A AC current: 10 mA/500 mA/10 A Resistance: 200 Ω/2/20/200 kΩ/2 MΩ 20 ranges 75 mm mirror scale Sensitivity: 20 kΩ/V DC - 9 kΩ/V AC Continuity test with beeper Safety: EN-61010-1; CAT II 600 V Accessories: Carrying case, test leads, batteries and manual Dimensions: 110 x 175 x 45 mm Weight: 315 g
