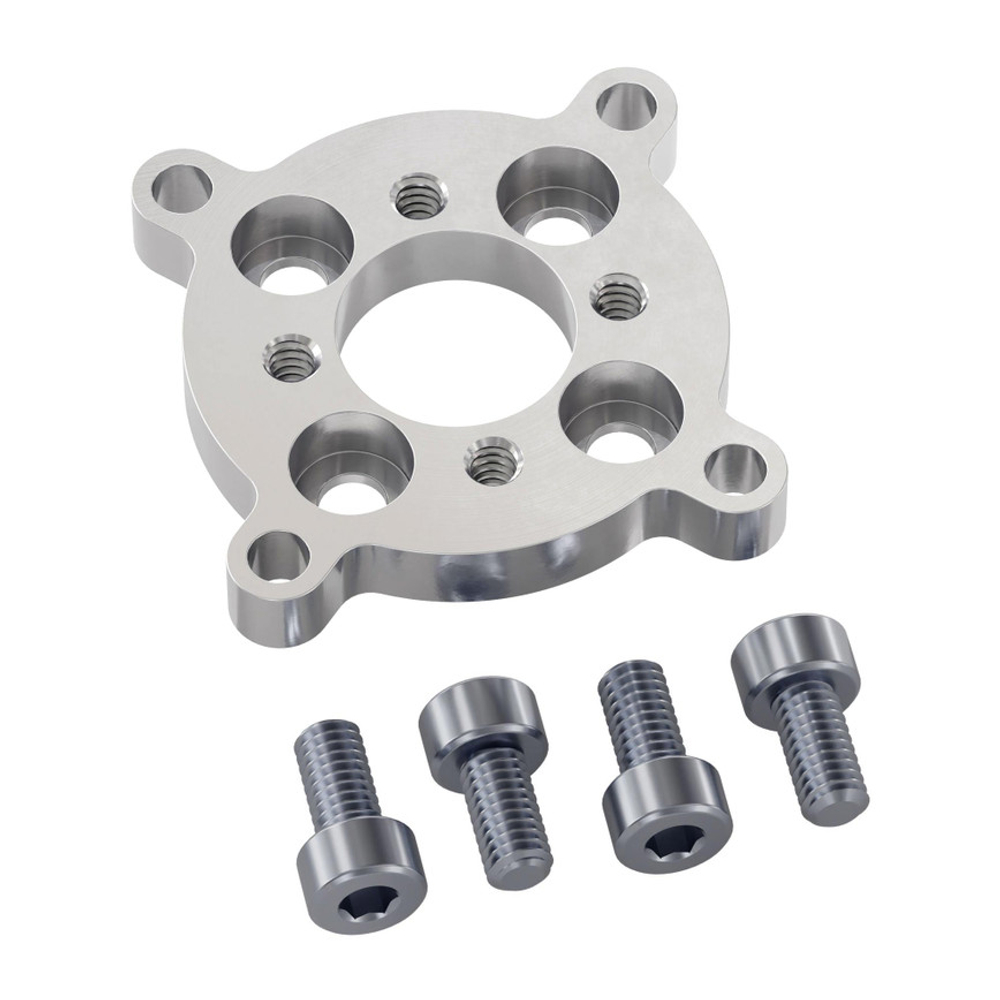

1206 Series Pattern Adaptor (16-4)

1206-0016-0004 1206 Series Pattern Adaptor (16-4) is a universal aluminum adapter designed for simple and reliable integration of goBILDA and Actobotics system components into a single structure. With its combination of different hole patterns, it is particularly suitable for mounting 5202 Yellow Jacket series geared motors on Actobotics structures, as well as for connecting structural elements of both systems.

Key Features:

• Triple Compatibility:
  • For goBILDA: Through-holes for M4 screws, arranged on the standard 16 mm goBILDA grid.
  • For Actobotics: 6-32 UNC threaded holes on the Actobotics 0.77 inch bushing pattern.
  • For Actobotics: Through-holes for 6-32 UNC screws on the Actobotics 1.5 inch bushing pattern.
• Specialized for Motors goBILDA: When installing the 5202 Yellow Jacket motor, the standard M4 screws are countersunk into the adapter countersinks, allowing the entire assembly (motor + adapter) to fit snugly and evenly against the Actobotics part being mounted.
• Strong and lightweight construction: Made of clear-anodized aluminum, weighing 14 grams—an optimal strength-to-weight ratio.
• Simplifies hybrid builds: Eliminates the need for complex, homemade adapters or modifications, allowing you to quickly and reliably connect components from different ecosystems.
• Versatility: In addition to mounting motors, it can be used to connect any other compatible goBILDA and Actobotics components, such as brackets, plates, and structural elements.

For whom: For FTC teams and engineers who use equipment from both goBILDA and Actobotics in their projects (in particular, Yellow Jacket motors) and from Actobotics, and need a simple, ready-made and reliable solution for their mechanical integration.
