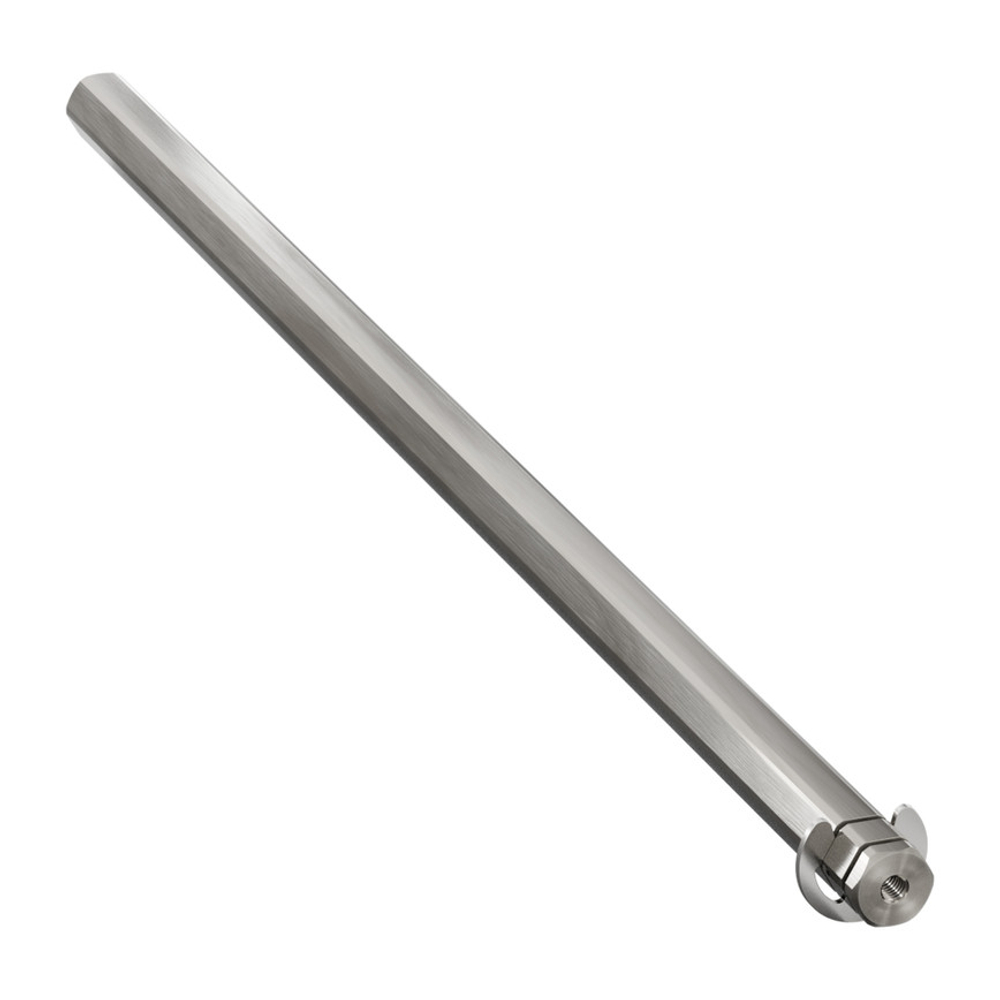

12mm REX™ Shaft with E-Clip (Stainless Steel, 312mm Length)

12mm REX™ Shaft with E-Clip is a robust 312mm long, 12mm diameter shaft with a REX™ profile that provides reliable drive for large goBILDA® system components. The combination of a 12mm round and a hexagonal REX™ profile allows the shaft to be used for both precision drives and in standard round bearings.

• Material: Stainless Steel
• Weight: 251g
• Length: 312mm
• Diameter: 12mm

The 12mm diameter provides clearance in the center of a 14mm diameter hole. Slots are included for an E-clip, which limits movement in one direction. When factory installed, the E-clip leaves 10mm of shaft for bearing seating. When installing the E-clip in an alternate position, 4 mm of clearance is left. The ends of the shaft are threaded with M4 threads, allowing it to be used as a stand or secured with screws.
