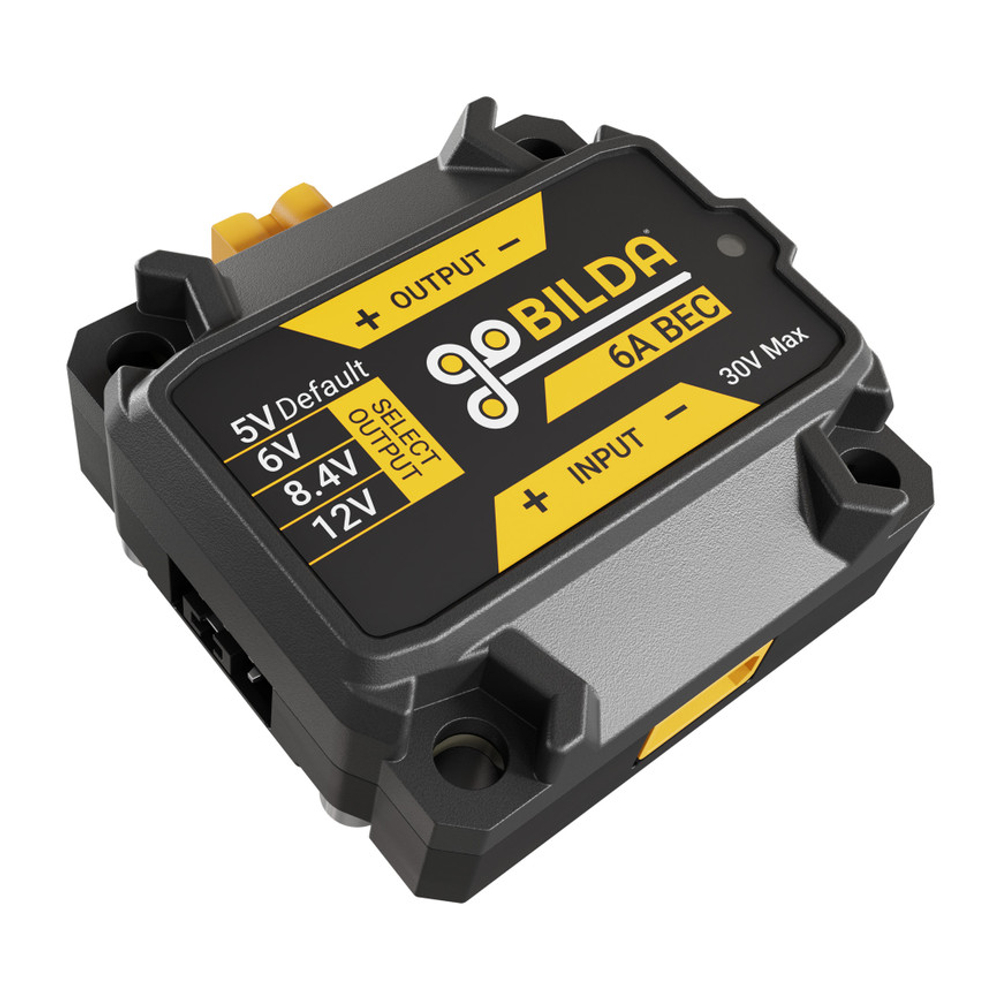

6A BEC / Voltage Regulator (6-24V Input, 5V, 6V, 8.4V, 12V Output, XT30 Connectors) — easily installed in the goBILDA® ecosystem thanks to four through-hole hexagonal recesses in a 32mm square pattern, allowing for one-tool installation. Allows you to safely supply the selected output voltage via the XT30 connector; The output voltage can be changed from 5V to 6V, 8.4V or 12V with a jumper.
- Weight: 25g
- Output Voltage: 5V, 6V, 8.4V, 12V
- Voltage Drop: 1V
- Efficiency: 83%–93%
- Output Current: 6A Continuously (7A Short-term)
- Output Voltage Ripple: ≤ 300 mVpp
- No-Load Current: 10–20 mA
- Input Voltage: 6–24V (@5V output), 7–24V (@6V output), 10–24V (@8.4V output), 13–24V (@12V output)
- V Includes: 4 x M4 20mm long socket head cap screws, 4 x M4 x 0.7mm Nylock nuts.
Application: Converts input voltage into a safe and stable output to power various project components without additional batteries.
