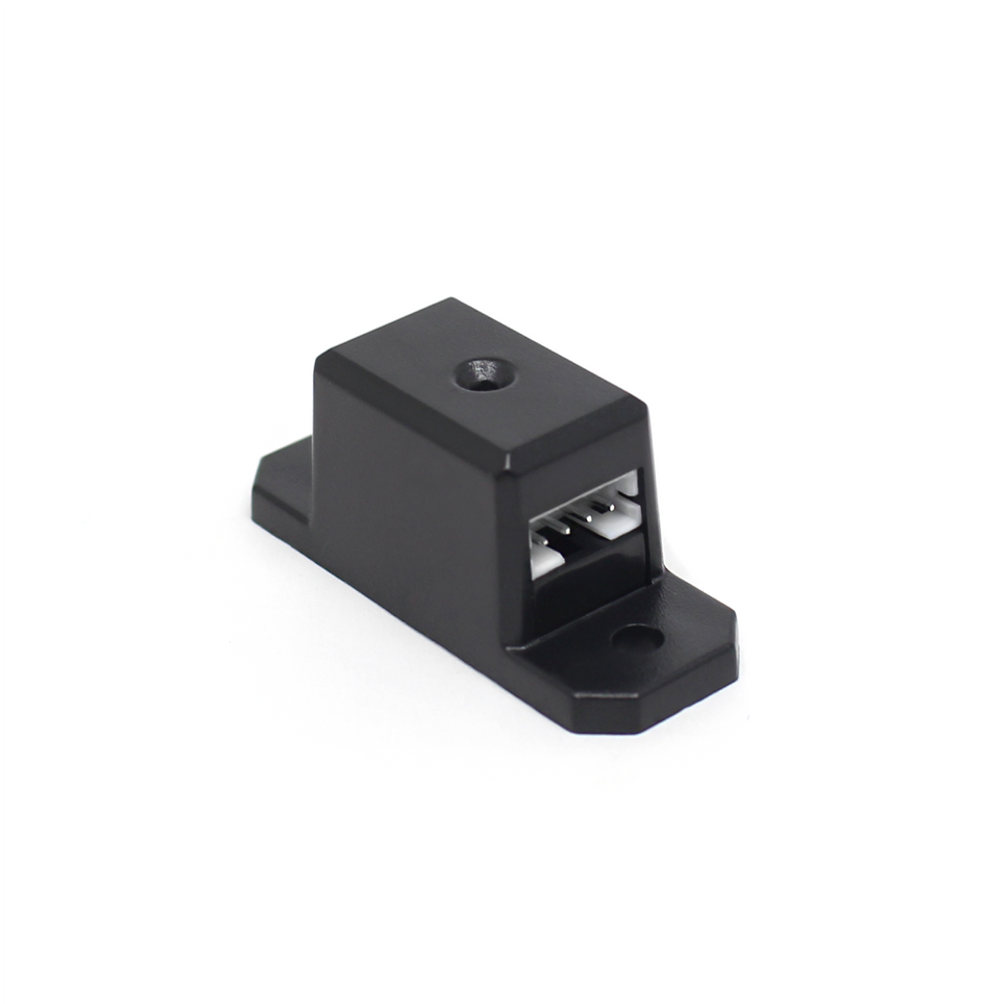

REV Magnetic Limit Switch is a magnetically sensitive limit switch with a Hall effect.
A three-way digital sensor that is triggered by the approach of a magnet. Three independent Hall elements on the top and sides allow detection of magnetic fields from different directions. Suitable for precise positioning and machine position detection.
Key Benefits:
- Three-way sensing: Three Hall sensors (top and sides) for flexible magnet placement.
- Universal polarity: Detects both magnetic poles (north and south).
- Contactless operation: No physical contact required, increasing reliability and durability.
- Easy wiring: Digital active low, connects to ports n and n+1.
- Magnet included: A 4300 Gauss magnet is included for easy installation.
Key Features:
- Sensor Type: Digital, active low level
- Supply voltage: 3.3 V – 5.0 V
- Magnet polarity: Omnipolar (operates on both poles)
- Operating range (with included magnet): Top — up to 10 mm, side — up to 5 mm
- Included magnet strength: 4300 Gauss (0.43 T)
- Connection: Port n and n+1
