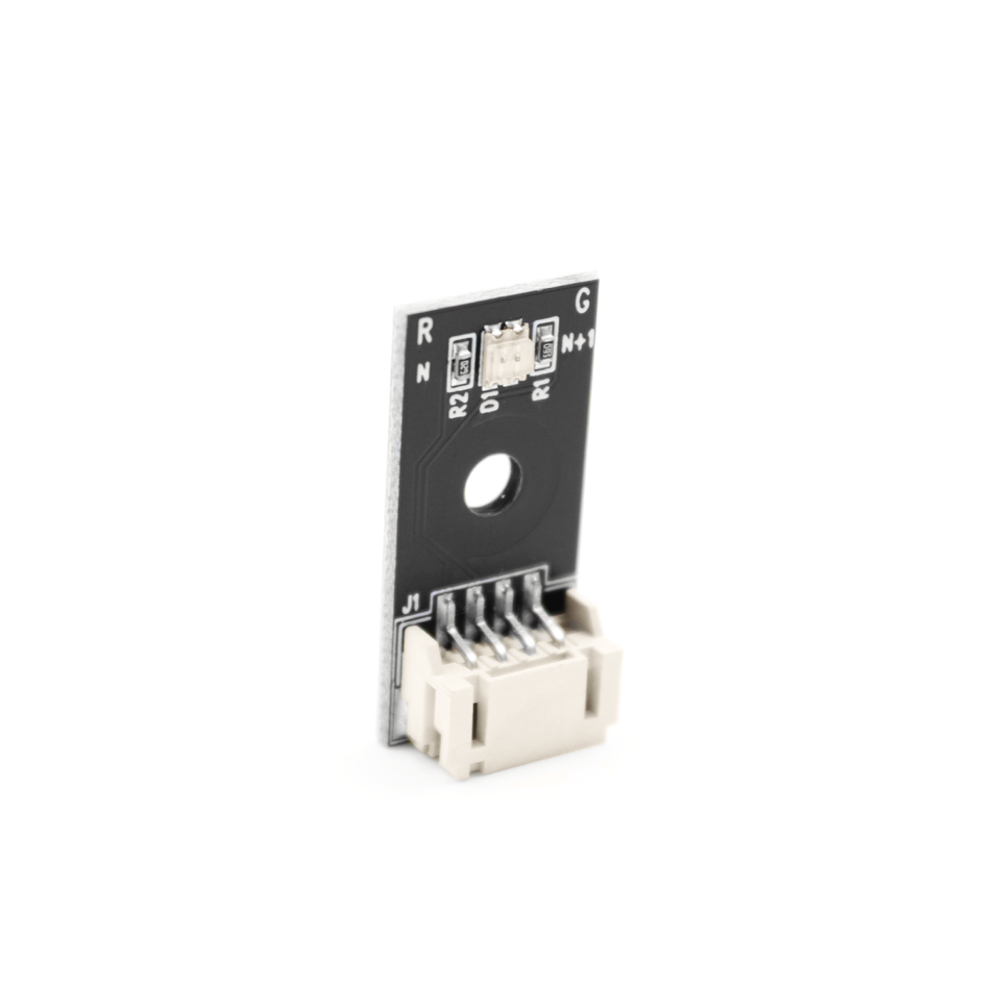

REV Digital LED Indicator - Red/Green — a digital LED indicator for visual robot signaling.
A three-color module (red, green, amber) with digital control. Connects directly to the digital ports (DIO) of the Control Hub or Expansion Hub. Ideal for indicating operating modes, system status or warnings.
Key Benefits:
- Three colors in one: Red, green and amber (when turned on simultaneously) for different signals.
- Direct connection: Works with the DIO ports of the REV Control Hub / Expansion Hub without additional drivers.
- Brightness and viewing angle: Wide 170° viewing angle and high brightness for good visibility.
- Easy installation: Ready for panel mounting through a 3.81 mm diameter hole.
- Savings per set: Pack of 4 For indication of all key robot systems.
Key features:
- Colors: Red, green, amber
- Supply voltage: 3.3 V
- Current consumption: 20 mA (single color), 40 mA (amber)
- Control: Digital (DIO), active low level
- Viewing angle: 170°
- Dimensions: 28 x 13.5 mm
- Mounting hole diameter: 3.81 mm (0.15")
- Quantity per package: 4 pcs.
