Description

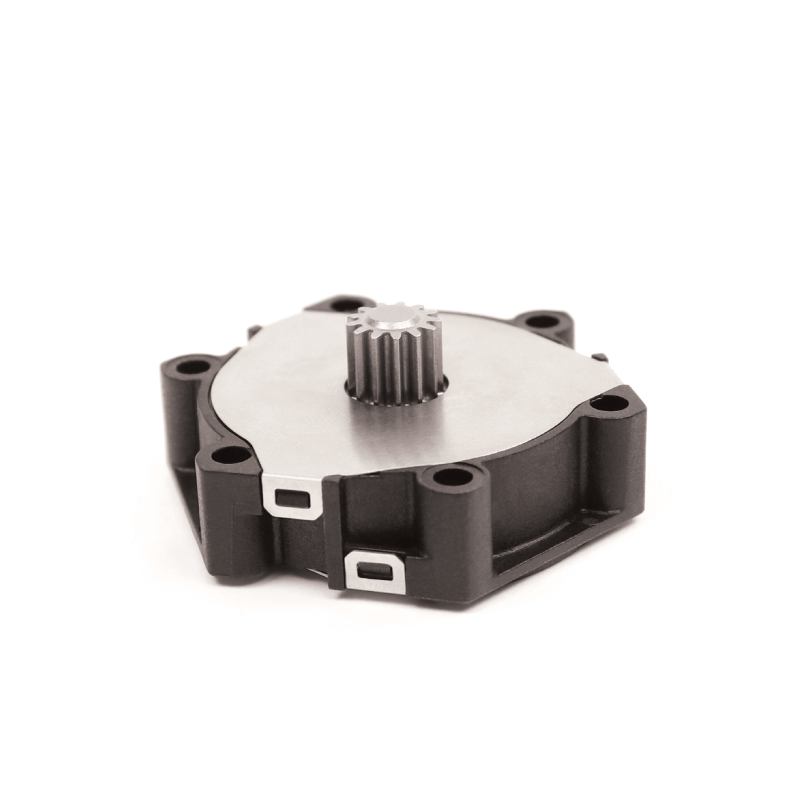

UltraPlanetary Cartridge - 3:1 is a separate cartridge for the UltraPlanetary system with a nominal reduction ratio of 3:1. The UltraPlanetary System is a modular gearbox designed for both competition and educational use, allowing you to easily change and customize gear ratios using pre-assembled and lubricated cartridges.
- Allows you to build single and multi-stage planetary gearboxes
- Two ways to transmit power through the output shaft: face mount or choice of 5mm hex shaft length
- Various mounting options using 15mm REV extrusion, C- or U-channels
- Compatible with HD Hex Motor (REV-41-1291), NEO 550 Brushless Motor (REV-21-1651), and other 550 series motors with compatible shafts and mounts
- Materials: Powdered steel, glass-reinforced PA66 nylon
- Pressure Angle: 20°
- Module scale: 0.55
- Actual gear ratio: 2.89:1
- Weight: 35.5g (0.078lb)
The cartridge is suitable for use with FTC devices and facilitates modular construction and customization of planetary gearboxes in robotics projects.
Characteristics
Brand
REV Robotics
FIRST category
FIRST ® Tech Challenge
