Description
Characteristics
Description

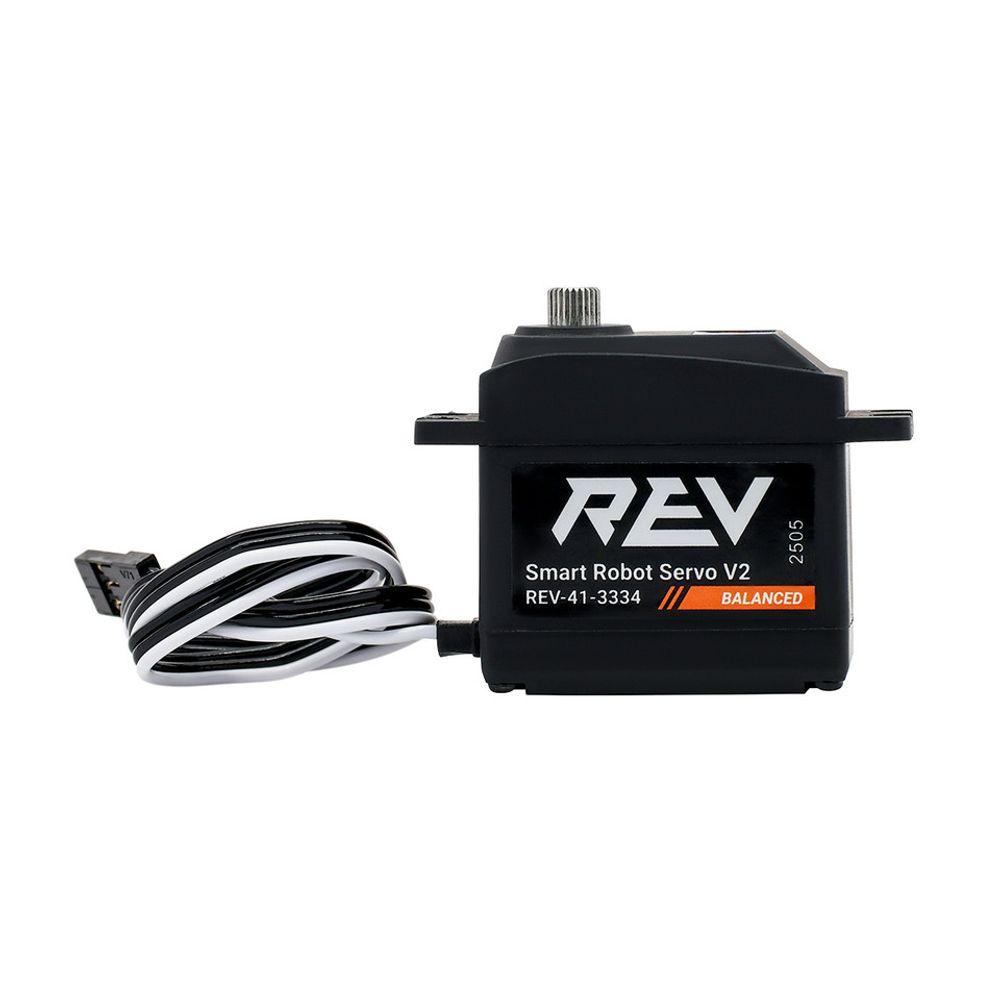

REV Smart Robot Servo V2 Balanced is a versatile and powerful actuator for robotics.
The ideal balance of speed and force for most robotics projects (FRC, FTC). This steel gear servo is built for reliable operation in demanding applications where both power and precision are essential.
Key Benefits:
- Optimal Combination of Power and Speed: High torque of 16.7 kg-cm at 7.4V for handling heavy loads.
- Proven Reliability: Solid metal gears ensure durability in competition conditions.
- Flexible Reprogramming: Change the operating mode (angle/continuous) and adjust the range up to 280° without mechanical modification - with the optional REV programmer.
- Out of the Box Compatibility: Works as a standard 270° servo with any controller.
Key Features:
- Torque (7.4V): 16.7 kg-cm / 232 oz-in
- Speed (7.4V): 0.12 sec/60°
- Voltage: 4.8–7.4 V (6V nominal)
- Range: 270° (programmable to 280°)
- Weight: 62 g
- Gear Material: Steel
- Spline Type: 25T with M3 internal thread
Characteristics
FIRST category
FIRST ® Tech Challenge
