Smart Robot Servos V2 - UltraSpeed

Name: Smart Robot Servos V2 - UltraSpeed
SKU: REV-41-3336
Price: 29260.0 KZT
Availability: InStock

(0)

Add to comparison

In cart pcs. Detail

Buy in one click

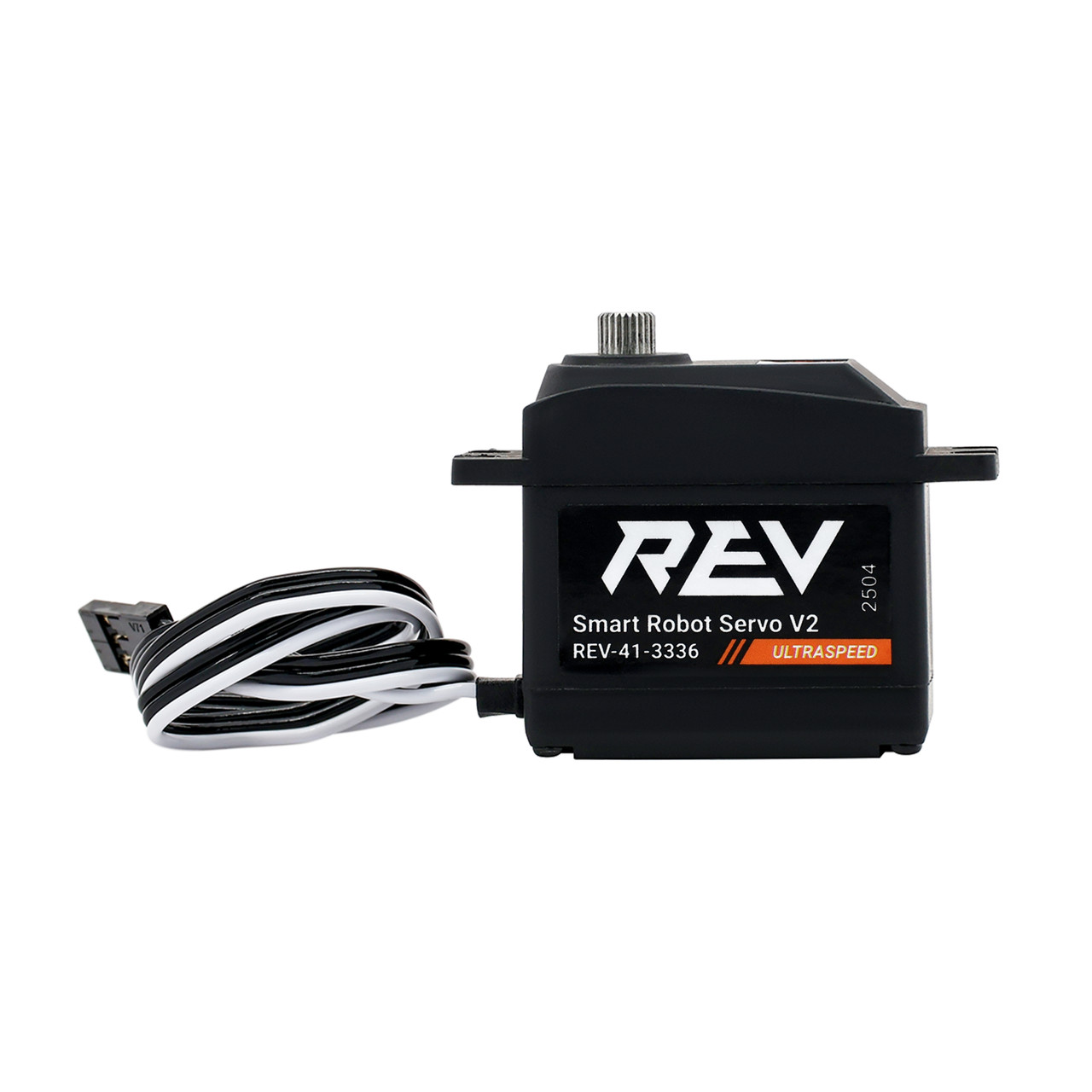

The Smart Robot Servo V2 – UltraSpeed from REV Robotics is a high-speed, intelligent servo drive with all-metal gears designed for robotics and STEM projects. It combines high speed, precision, and reliability, making it ideal for dynamic robotic applications.

The servo drive supports angular mode, user-defined angular limits, and continuous rotation mode. Configuration is performed using the REV SRS Programmer without disassembling the device. The UltraSpeed version is optimized for applications that require extremely fast response and stable operation under intensive use.

Description

Characteristics

Description

REV Smart Robot Servo V2 UltraSpeed is a lightning-fast and intelligent robotic actuator.

Get a decisive speed advantage for your robotics projects (FRC, FTC). This all-steel gear servo is built for instant response in the most demanding applications.

Key Benefits:

Record-Breaking Speed: 0.035 sec/60° at 7.4V for the fastest manipulators and guidance systems.
Rugged Reliability: All-metal gearing withstands impact loads.
Flexible Reprogramming: Change the mode (angle/continuous) and the range up to 280° without disassembly - with the optional REV programmer.
Ready to Work: Works as a standard 270° servo out of the box.

Key Features:

Speed (7.4V): 0.035 sec/60°
Torque (7.4V): 6.2 kg-cm
Voltage: 4.8–7.4 V
Range: 270° (programmable up to 280°)
Weight: 60 g
Gear material: Steel

Characteristics

FIRST category

FIRST ® Tech Challenge
