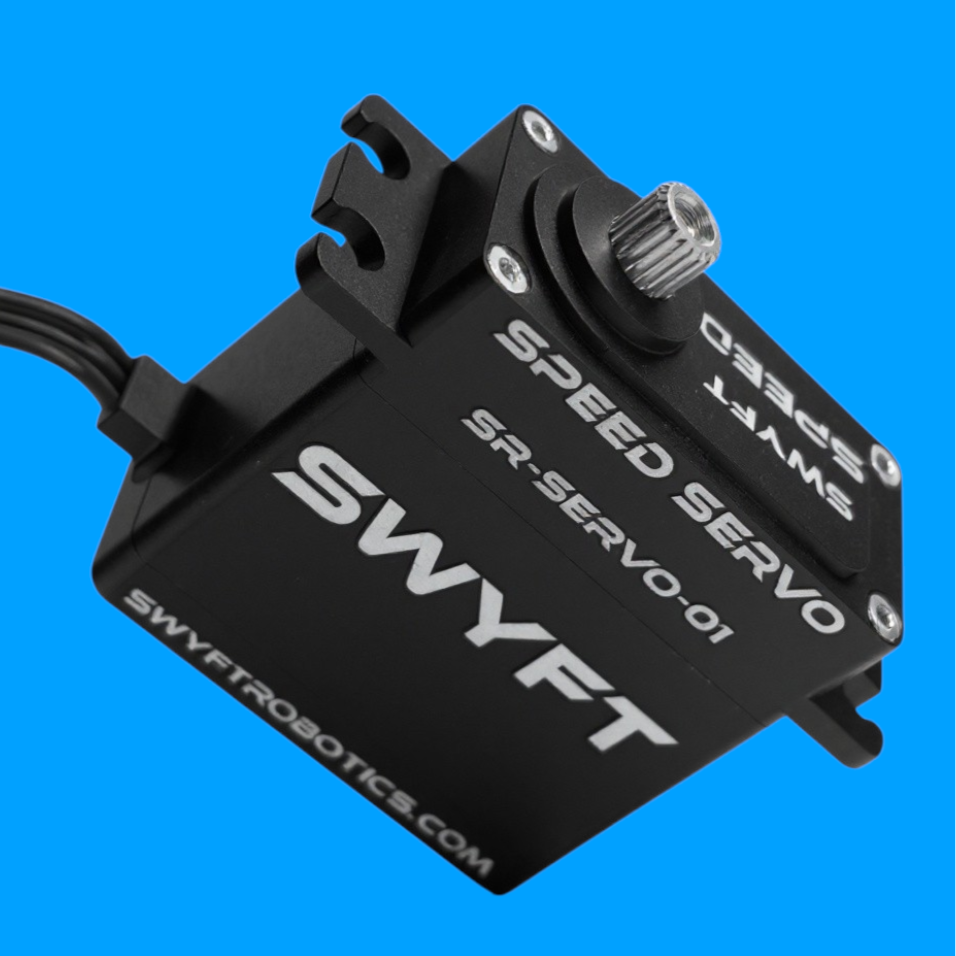

SWYFT Servos - Speed V1.1

SWYFT Servos - Speed V1.1 is a servo designed for maximum power, durability, and versatility, perfect for FTC-compatible robotics projects.

• Three gear ratio options - Speed for ultra-fast movements, Balance for balanced performance, Torque for maximum force when lifting heavy objects.
• Ultra-strong gears - Updated Hardened SS304 gears provide high strength and durability (V1.1).
• Anchorless motor - High efficiency, minimal power consumption, and close to the legal limit of power for servos.
• Dual ball bearings - Smooth and precise rotation with minimal friction and wear.
• Protection PCB — the printed circuit board is sealed with compound to protect it from vibration, shock and external factors.
• H25T Spline Type — plastic servo horns are included for convenient mounting.
• Aluminum Housing — lightweight and durable, weighs 83g.
• Programmable Functions — via SWYFT Servo Programmer (sold separately), you can configure the stroke range, PID coefficients, rotation direction, and jam protection.
• Continuous Rotation — full speed support, the new version of Speed Servo with PWM speed control, other models only full speed.
• Extended Stroke Range — up to 320° (shipped with 270° by default).
• Jam Protection — automatic power-off after 10 seconds when lock.
• Direction control — CW or CCW.

Specifications: Weight 83g, Aluminum housing, Hardened SS304 gears, Anchorless motor, Double ball bearings, H25T Spline, Programmable settings via SWYFT Servo Programmer, Supports continuous rotation, Stroke range up to 320°.

Application: Ideal for high-speed and precision maneuvers, heavy lifting and other robotic applications with FTC compatibility, ensuring reliable operation and durability of the servo.
