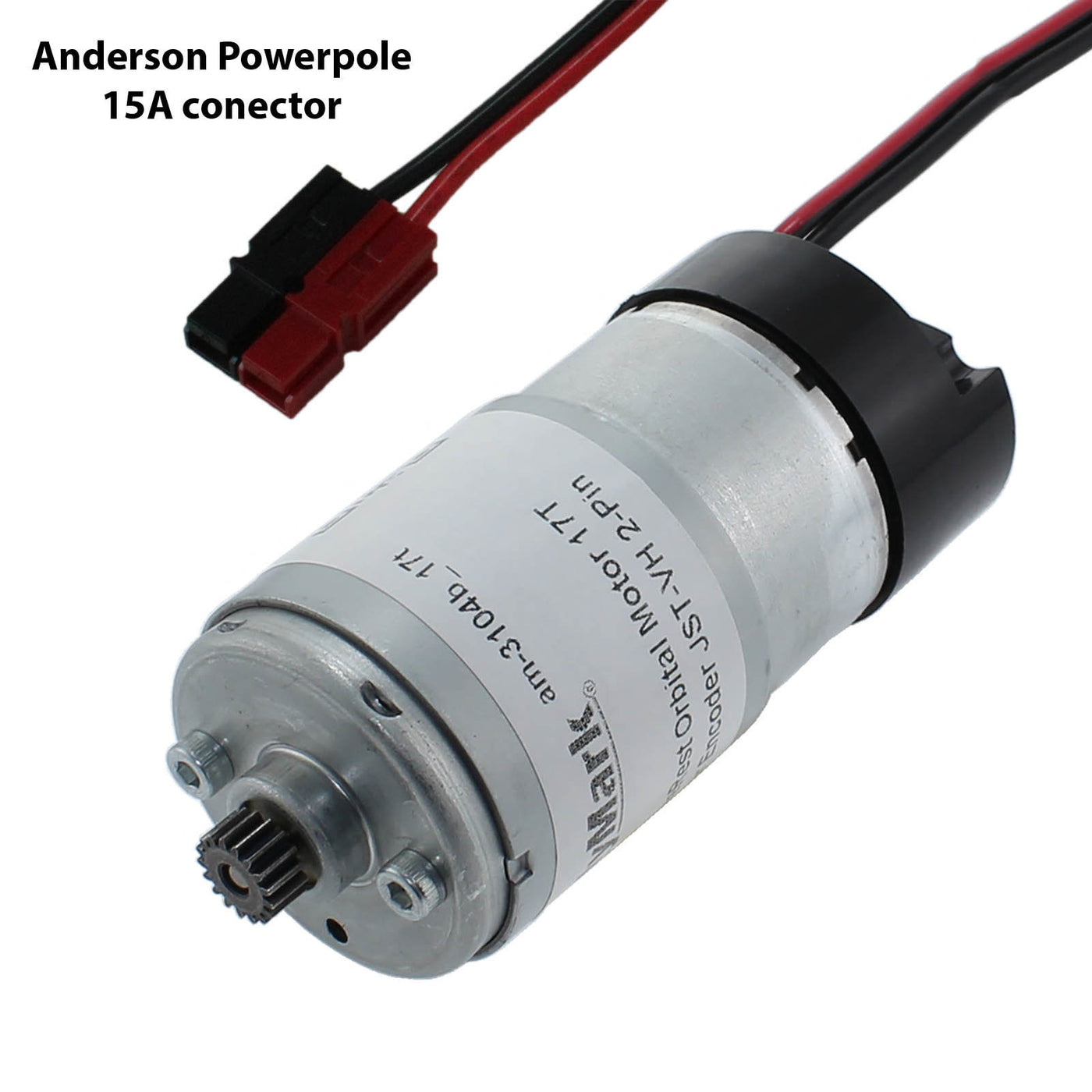

NeveRest Series Motor Only 17 Tooth w/ Anderson Powerpole

NeveRest Series Motor Only (17 Tooth w/ Anderson Powerpole) (am-3104_17t) is a powertrain component designed to replace or build drives that utilize planetary gearboxes.

Features of this model:

• Orbital and Hex Compatibility: The pre-installed 17-tooth gear (modulus 0.48) is specifically designed to work with the NeveRest Orbital and NeveRest Hex series gearboxes. It does not fit the Classic series.
• Anderson Powerpole Connectors: The power cable is equipped with reliable 15-amp Anderson connectors, ensuring high-quality contact and quick connection.
• Built-in Encoder: The motor is equipped with a Hall sensor that produces 7 pulses per revolution of the motor shaft, allowing for precise control of the system.
• Specifications: Nominal voltage is 12 V, no-load speed is approximately 6000 rpm.

Important: This is a bare motor only. To obtain the required torque, it must be connected to an appropriate gearbox (sold separately). Encoder cable is not included.
