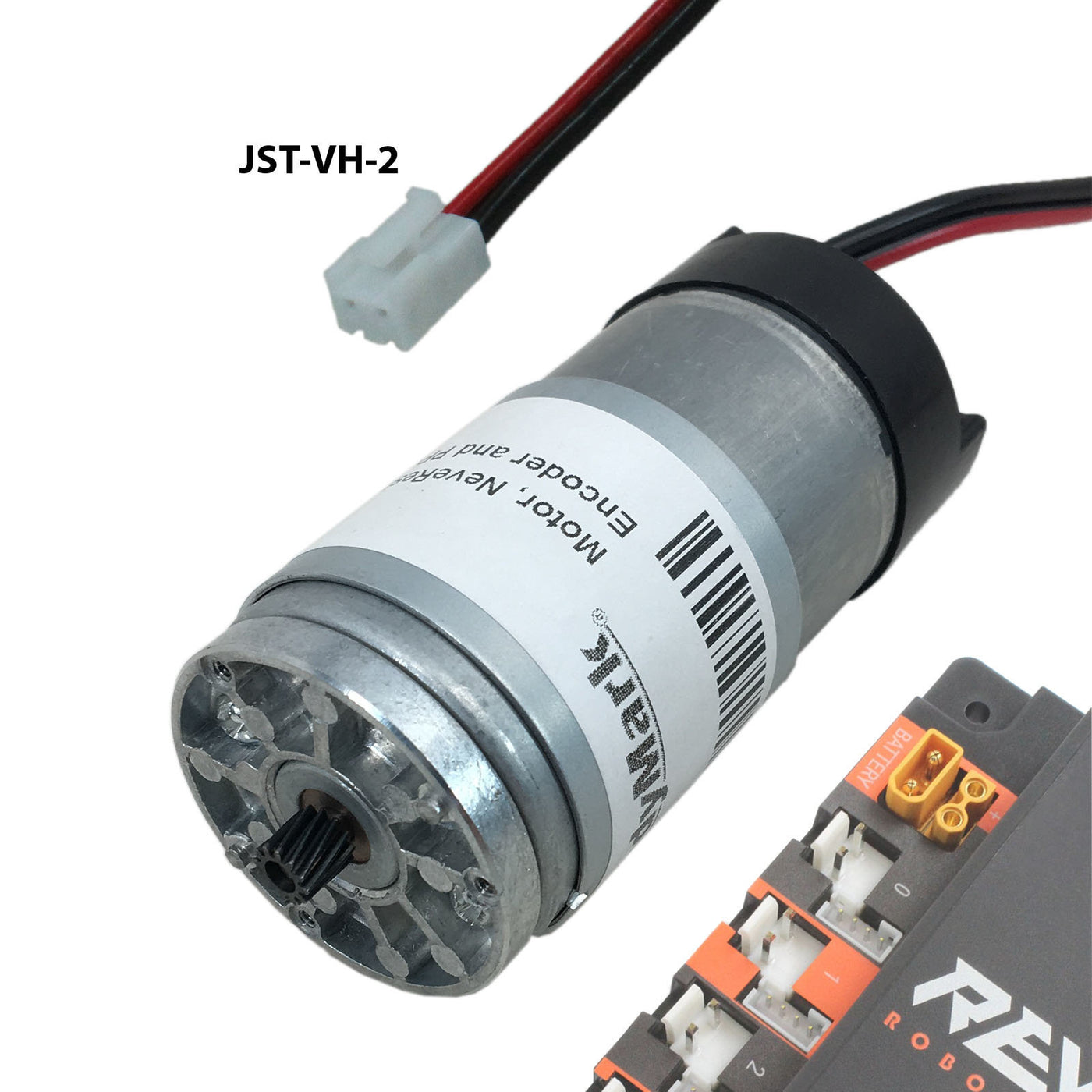

NeveRest Series Motor Only 12 Tooth JST-VH-2

NeveRest Series Motor Only (12 Tooth JST-VH-2) (am-3104b_12t) is a separate motor used in the NeveRest Classic series of drives. This is a replacement or custom build component that comes with a pre-installed gear.

Features & Specifications:

• Classic Compatible: The pre-installed 12-tooth gear is designed to mate with the NeveRest Classic 40 and Classic 60 gearboxes.
• Easy Connectivity: The motor uses a JST-VH-2 connector, allowing it to be connected directly to the REV Expansion Hub or Control Hub without soldering.
• Built-in Encoder: A Hall-effect encoder (7 pulses per revolution) is located on the back of the motor to track rotation.
• Performance: At 12V, the motor produces approximately 6000 RPM at idle.

Important Note: This motor must be connected to a gearbox (sold separately) for the robot to operate. separately), as it has high RPM and low torque on its own. The encoder cable is also not included.
