NeveRest Series Motor Only 17 Tooth JST-VH-2 (m) cord

NeveRest Series Motor Only (17 Tooth JST-VH-2) (am-3104b_17t) is a replacement motor for drives using planetary gearboxes. This version is optimized for quick connection to modern FTC electronics.

Features and Specifications:

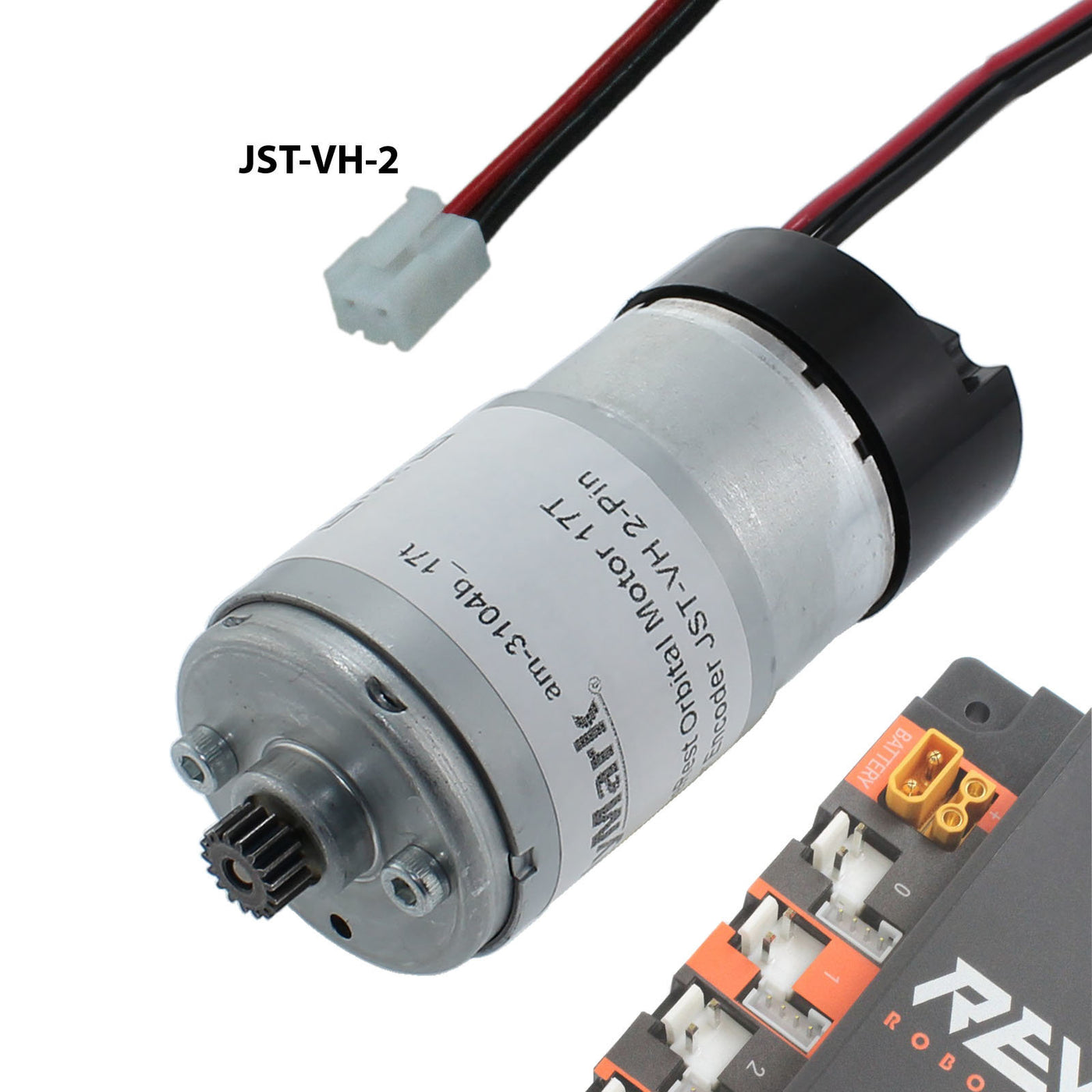

• Direct Connection to REV: The motor uses a JST-VH-2 connector, allowing it to be connected directly to the ports of the Control Hub or Expansion Hub without adapters.
• Dedicated Pinion: The pre-installed 17-tooth pinion (0.48 module) is compatible exclusively with the NeveRest Orbital and NeveRest Hex series gearboxes (not compatible with the Classic series).
• Built-in Encoder: A Hall Effect sensor is located on the back of the motor, generating 7 pulses per revolution of the motor shaft for accurate rotation tracking.
• Performance: The motor is rated for 12V and produces approximately 6000 RPM at idle.

Important: This product is a motor only. To function as part of a robot, it must be connected to a suitable gearbox (purchased separately). An encoder cable is not included.
