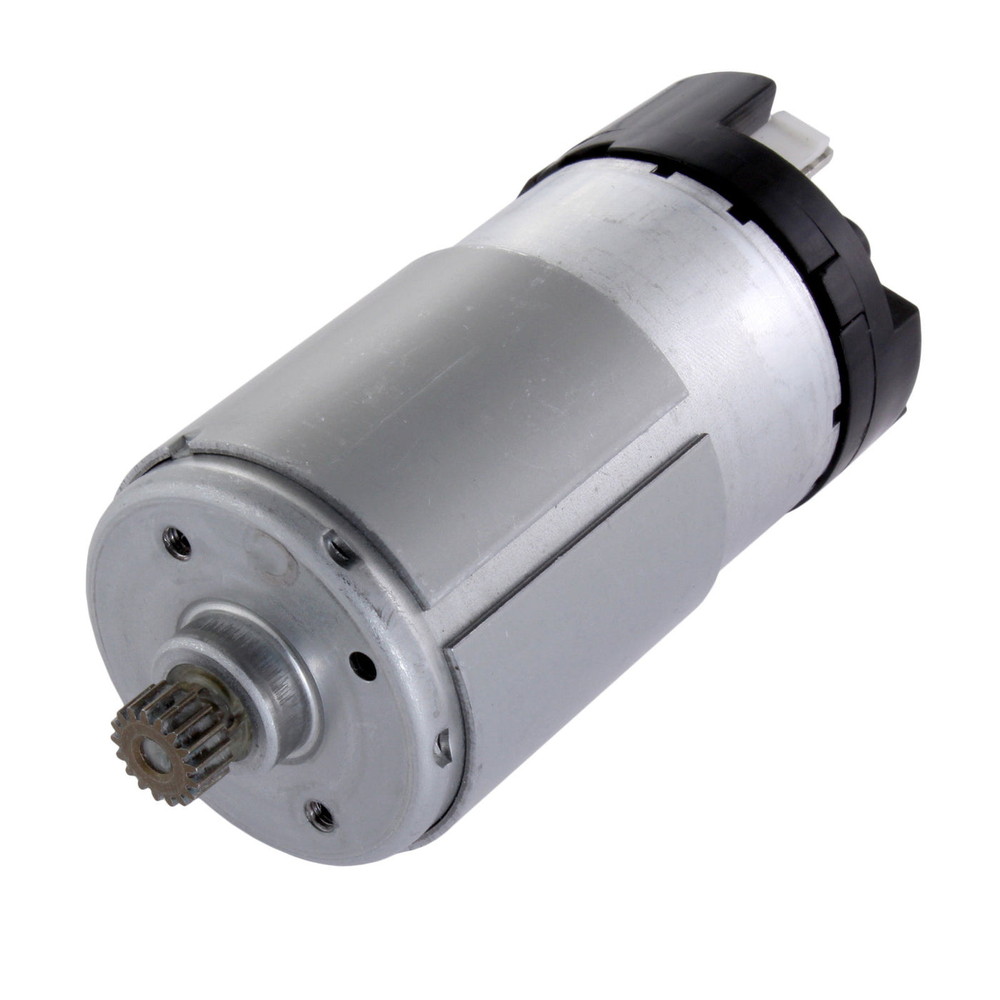

NeveRest Series Motor Only am-3104c_17t

The NeveRest Series Motor Only (am-3104c_17t) is a separate motor module designed for replacing the motor or for self-assembling a drive. The main distinguishing feature of this model is the gear mounted on the shaft.

Features and Specifications:

• Gearbox Compatibility: The pre-installed 17-tooth gear (0.48 module) is compatible exclusively with the NeveRest Orbital and NeveRest Hex series planetary gearboxes. It does not fit Classic Series gearboxes.
• Integrated Encoder: The motor has a Hall-effect encoder on the back cover that outputs 7 pulses per motor revolution, allowing for precise speed and position control after reduction.
• Performance: The motor operates at a nominal 12V and reaches approximately 6000 RPM at idle.
• Use: This component is required if you are replacing a worn motor in an existing Orbital/Hex module, or building a custom drive using your existing gearbox.

Important: This product does not come with a gearbox. The motor must be mated to an appropriate gearbox to produce operating torque. The encoder cable is purchased separately.
