NeveRest Orbital Gearmotors 3.7 to 1 (~1784 RPM) JST-VH-2

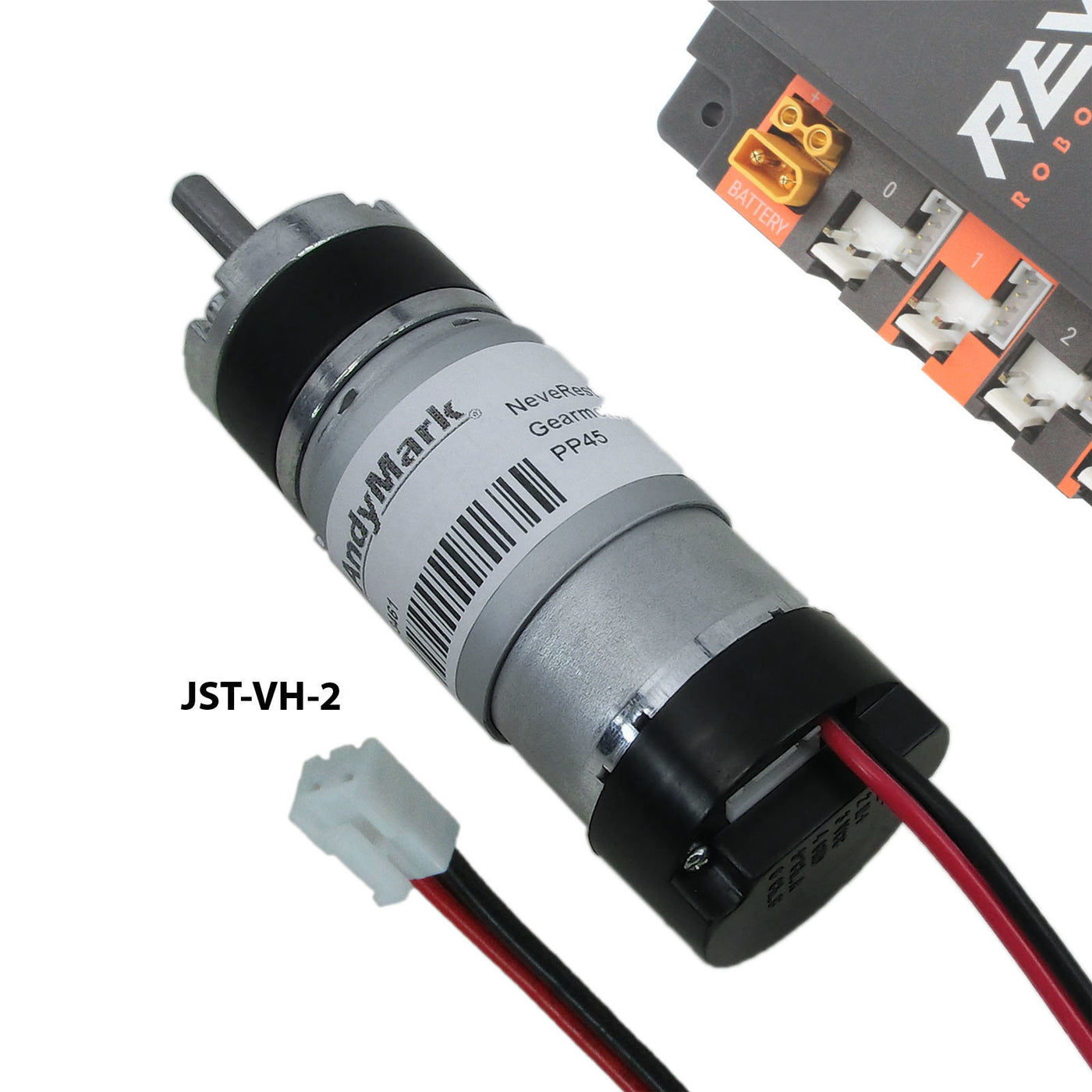

NeveRest Orbital Gearmotor (3.7:1, ~1784 RPM, JST-VH-2) (am-3461b) is a compact high-speed drive designed for applications where high speed with low torque gain is important. It is the ideal choice for active intakes, feed systems, and flywheels.

Features and Specifications:

• High Speed: Thanks to the planetary gearbox with a ratio of 3.7:1, the output shaft reaches a speed of approximately 1784 RPM, providing excellent dynamics for robotic mechanisms.
• JST-VH-2 Connector: The power cable features a standard connector for the FIRST Tech Challenge ecosystem, allowing you to connect the motor directly to the ports of the REV Expansion Hub or Control Hub without adapters.
• Planetary Design: Compact 37mm gearbox with a center shaft location ensures high power transfer efficiency and durability.
• D-Shaped Shaft (6mm): Standard shaft profile with a shear ensures a secure fit of gears, pulleys, and wheels, completely eliminating their spin.
• Precise Control: The integrated Hall sensor on the rear panel produces 25.9 pulses per revolution of the output shaft (7 motor PPR × 3.7), allowing the electronics to accurately maintain the set speed.
• Compatibility: M3 mounting holes on a 28 mm circle provide easy integration with PicoBox series brackets and gearboxes (LEO, GEO, MEO).

Important: The encoder connection cable is not included in the delivery set and must be selected separately depending on the type of your controller.
