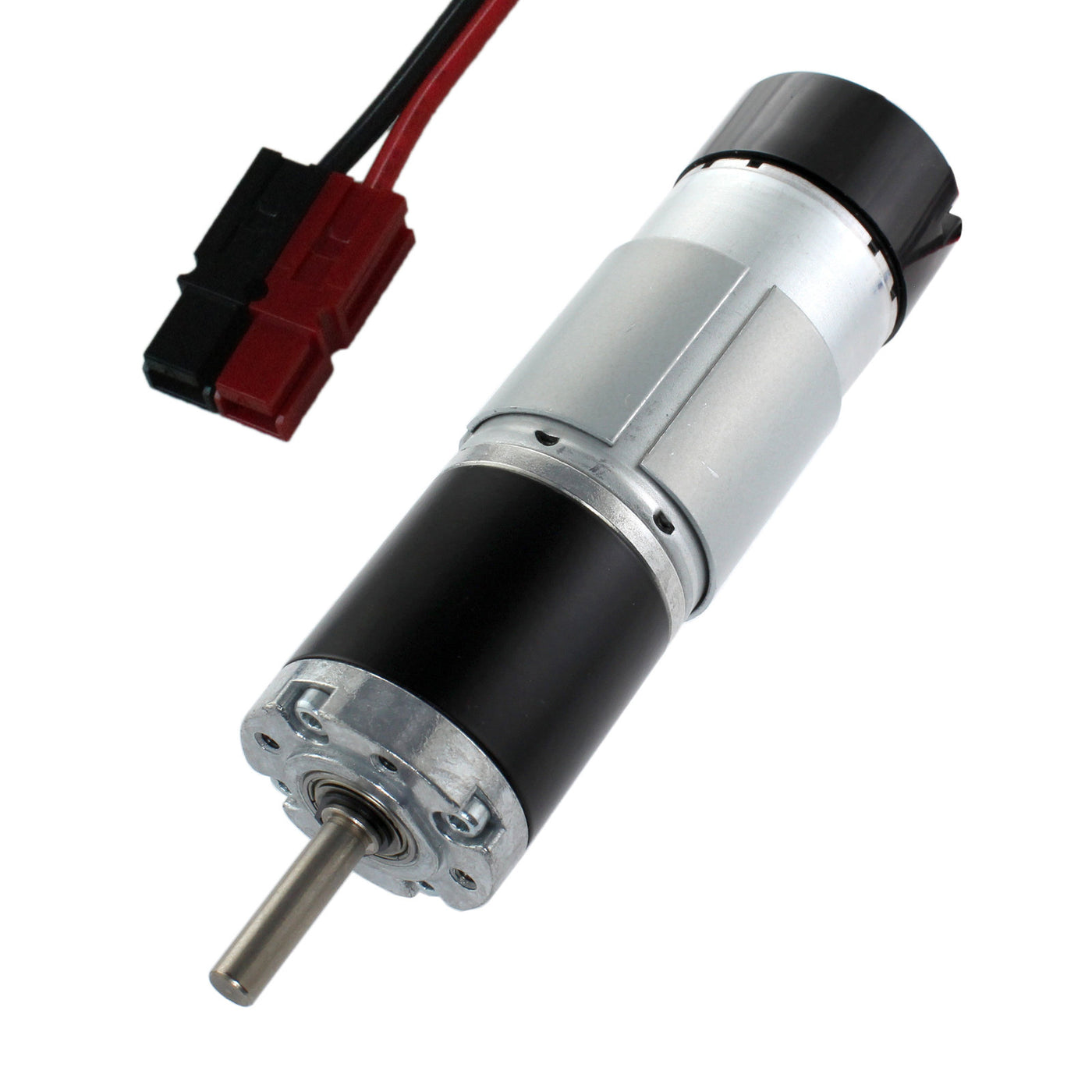

NeveRest Orbital Gearmotors 263.7 to 1 (~25RPM) Anderson Powerpole 15A

NeveRest Orbital Gearmotor (263.7:1, ~25 RPM, Anderson Powerpole) (am-4608a) is the most powerful solution in the NeveRest Orbital line. With a 263.7:1 gear ratio, this drive generates tremendous torque, allowing the robot to lift significant loads and hold massive manipulators at very low RPMs (around 25 RPM).

Features & Specifications:

• Extreme Power: The 263.7:1 gear ratio provides the highest tractive effort in the series, which is critical for heavy hoists, aerial lifts, and high-leverage rotary assemblies.
• Anderson Powerpole Connectors: The power cable is equipped with 15-amp Anderson Powerpole connectors, which provide a reliable, durable connection that is resistant to high loads and vibrations.
• Planetary Design: The compact 37 mm gearbox is coaxial with the motor shaft, which provides high mechanical strength and efficient power transmission under load.
• D-Shaped Shaft: The standard 6mm shear shaft ensures precise torque transmission to the hubs and gears, eliminating slippage entirely.
• Highest encoder resolution: Thanks to the enormous reduction ratio, the output shaft resolution is 1845.9 pulses per revolution (7 motor PPR × 263.7). This allows for micron-level positioning of mechanisms.
• Compatibility: The motor is mounted using four M3 holes on a 28mm circle and is ideal for use with the PicoBox series (LEO, GEO, MEO models).

Important: The encoder cable is not included in the delivery and must be selected separately for your controller type.
