NeveRest Orbital Gearmotors 263.7 to 1 (~25RPM) JST-VH-2

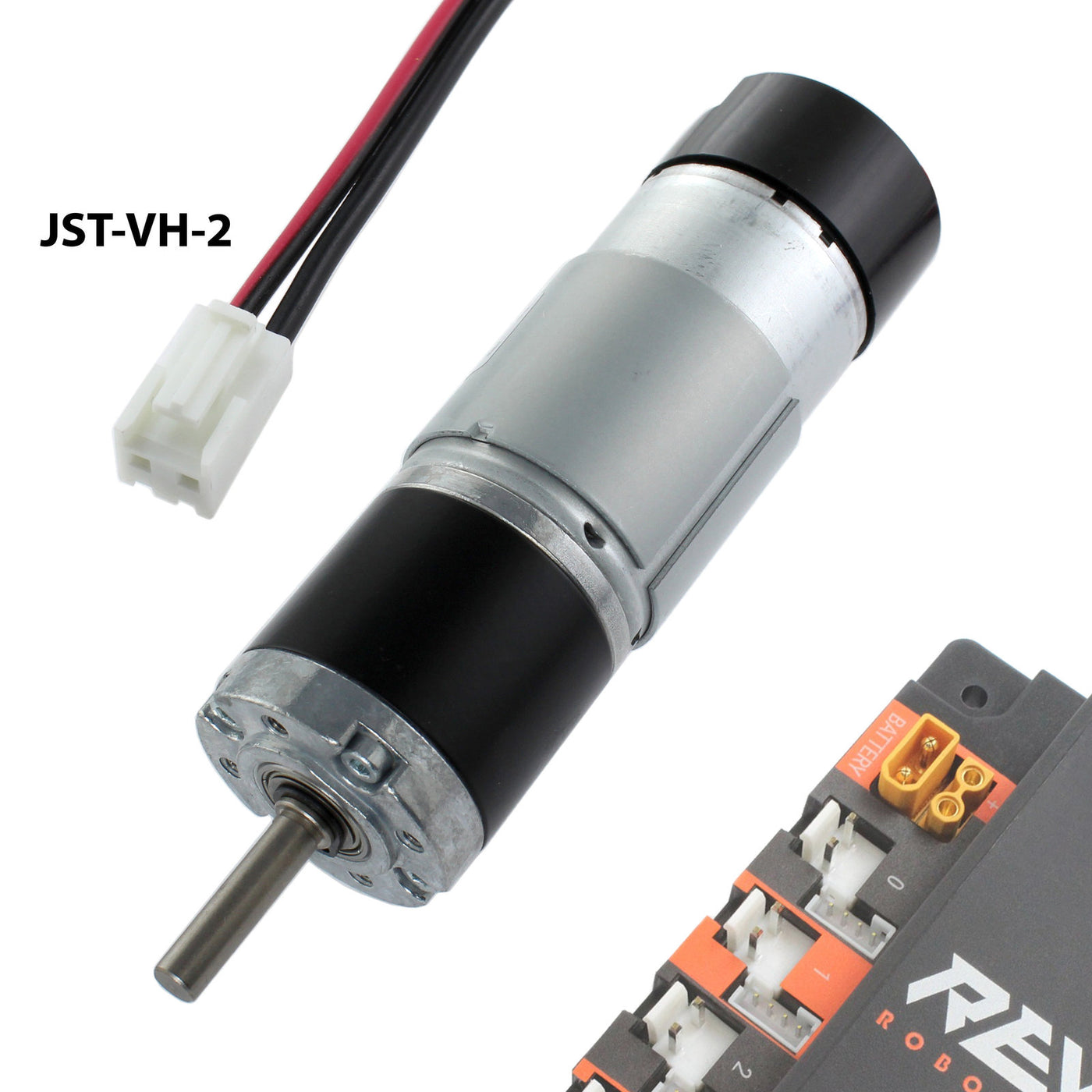

NeveRest Orbital Gearmotor (263.7:1, ~25 RPM, JST-VH-2) (am-4608b) is the highest power solution in the NeveRest Orbital line with a JST connector. With an extreme 263.7:1 gear ratio, this drive generates colossal torque, allowing the robot to smoothly lift heavy loads and hold massive manipulators at low RPM (approximately 25 RPM).

Features and Specifications:

• Extreme Power: The 263.7:1 gear ratio provides the highest traction force in the series, which is critical for heavy hoists, lifting elevators, and high-leverage rotary assemblies.
• JST-VH-2 Connector: The power cable features a standard connector for direct connection to the REV Expansion Hub or Control Hub, ensuring a reliable connection within the FTC ecosystem without the need for additional adapters.
• Planetary Design: The compact 37 mm gearbox is coaxial with the motor shaft, providing high mechanical strength and efficient power transmission under critical loads.
• D-Shaped Shaft (6mm): The standard shear shaft ensures rigid torque transmission to the hubs and gears, completely eliminating accessory slippage.
• Highest Encoder Resolution: Thanks to the huge reduction ratio, the resolution on the output shaft is 1845.9 pulses per revolution (7 motor PPR × 263.7). This allows for positioning mechanisms with exceptional accuracy.
• Compatibility: The motor is mounted using four M3 holes on a 28 mm circle and is ideal for use with the PicoBox series (LEO, GEO, MEO models).

Important: The encoder cable is not included in the delivery and must be selected separately depending on the type of your controller.
