NeveRest Orbital Gearmotors 1 to 1 (~6600 RPM) Anderson Powerpole 15A

NeveRest Orbital Gearmotor (1:1, ~6600 RPM, Anderson Powerpole) (am-5185a) is the solution for mechanisms that require maximum rotation speed, such as shooters, flywheels or rapid suction systems (intakes). With no gear reduction required, all motor power is transmitted directly to the output shaft.

Features & Specifications:

• Direct Drive (1:1): Delivers a shaft speed of approximately 6,600 RPM, making it one of the fastest solutions in the NeveRest line.

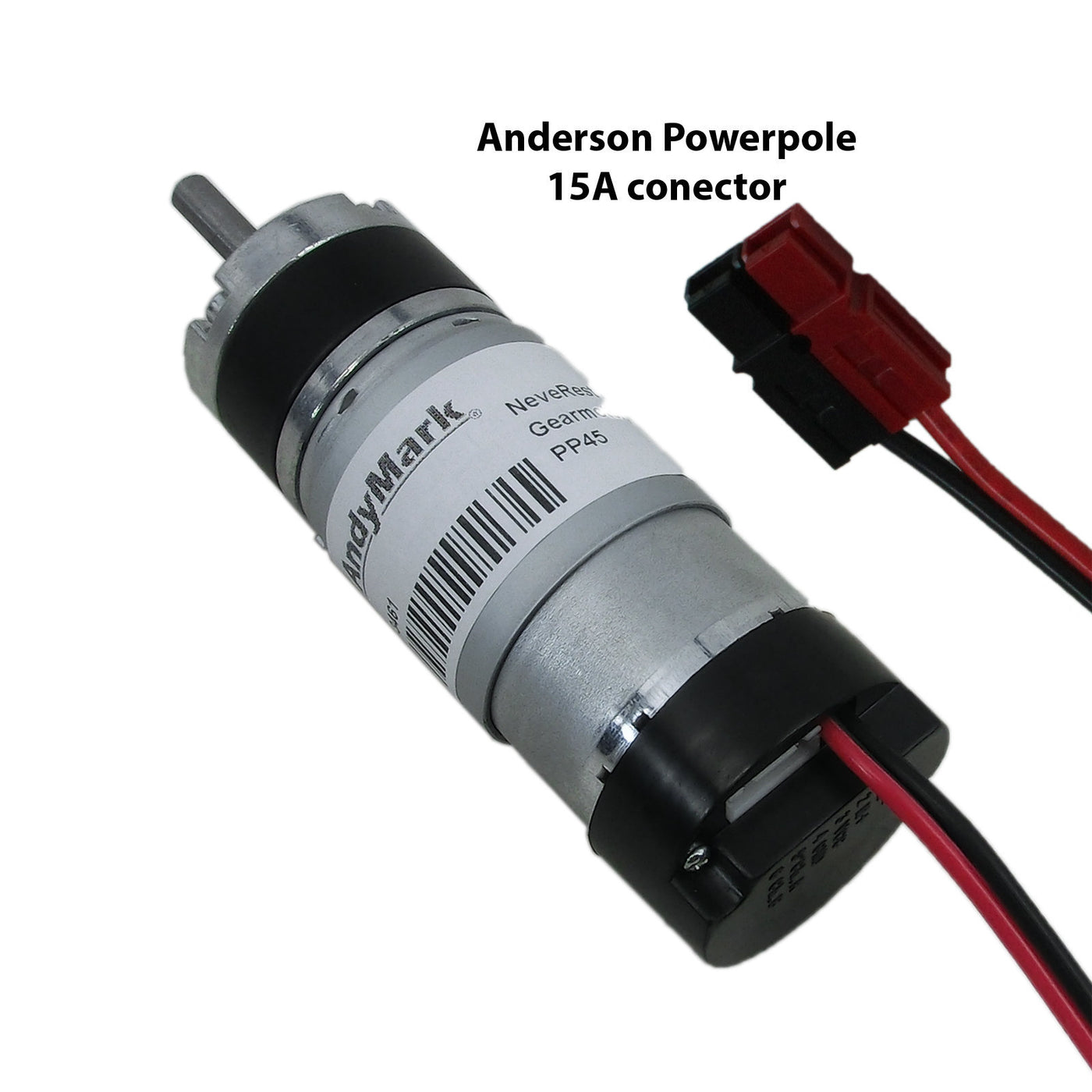

• Anderson Powerpole Connectors: The power cable features FTC's popular 15-amp Anderson Powerpole connectors, ensuring a secure connection even under high vibration conditions.
• Output Shaft: The motor features a standard 6mm D-shaft to prevent parts from slipping. The shaft is located exactly in the center of the front panel.
• Built-in encoder: The Hall sensor produces 7 pulses per revolution (PPR), allowing the electronics to accurately track RPM and maintain the set rotation speed.
• Mounting: The 37 mm diameter housing has four M3 mounting holes on a 28 mm circle, which ensures compatibility with a wide range of PicoBox brackets and gearboxes.

Important: The encoder connection cable is not included in the delivery set and must be selected separately depending on the type of controller used.
