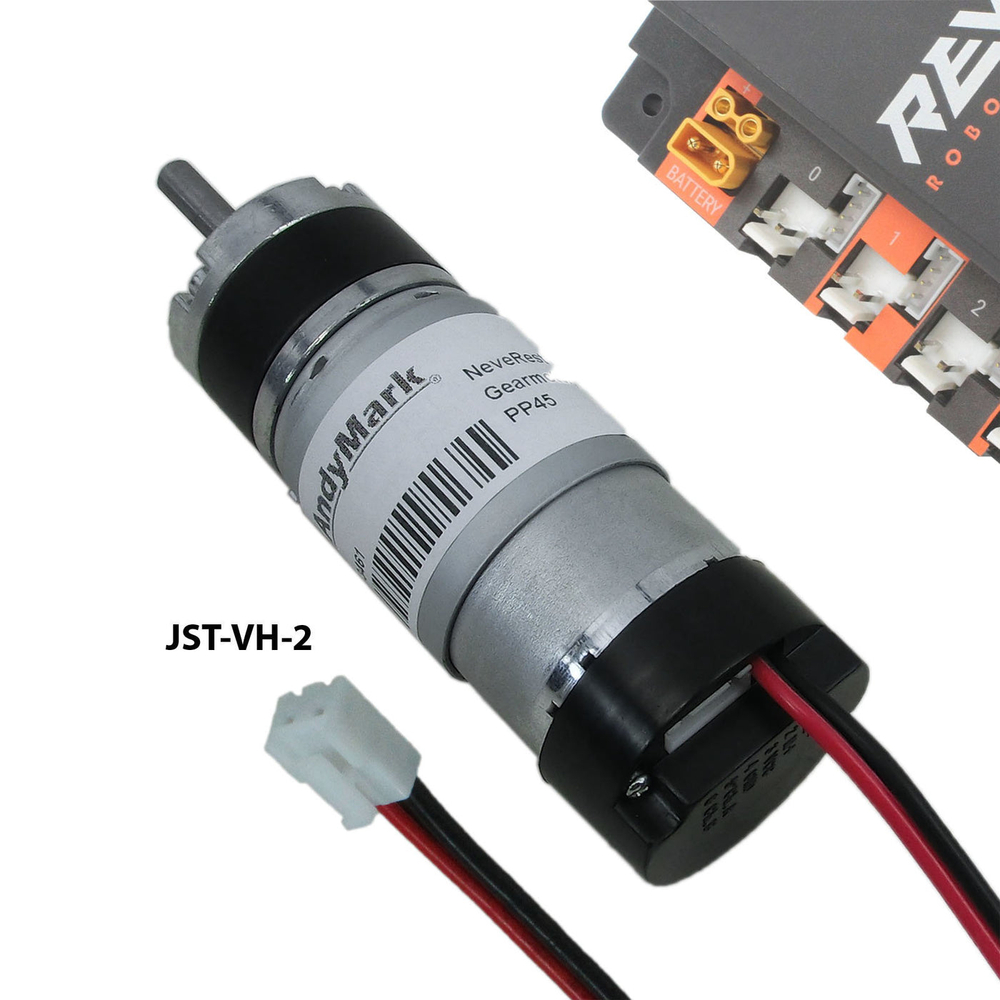

NeveRest Orbital Gearmotors 1 to 1 (~6600 RPM) JST-VH-2

NeveRest Orbital Gearmotor (1:1, ~6600 RPM, JST-VH-2) (am-5185b) is the fastest option in the Orbital line, designed for mechanisms that require maximum RPM, such as shooter flywheels or active suction systems. The absence of a gearbox allows for a speed of 6600 RPM with minimal friction.

Features and Specifications:

• Direct Drive (1:1): Delivers maximum RPM for dynamic applications where high inertia and RPM are critical.
• JST-VH-2 Connector: The power cable features a standard connector for the FIRST Tech Challenge ecosystem, allowing you to connect the motor directly to the REV controller without the need for adapters.
• D-Shaped Shaft (6mm): The standard sheared shaft profile provides reliable torque transmission and is compatible with most hubs, gears, and pulleys.
• Built-in Encoder: The Hall Effect sensor outputs 7 pulses per revolution (PPR), providing the accuracy needed for real-time RPM monitoring.
• Mounting Compatibility: 37mm diameter housing with four holes M3 on a 28 mm circumference, making it fully compatible with the PicoBox series (LEO, GEO, MEO).

Important: The encoder connection cable is not included in the delivery set and must be selected separately for your controller type.
