NeveRest Hex Gearmotors 1 to 1 (~6600 RPM) 1 in.

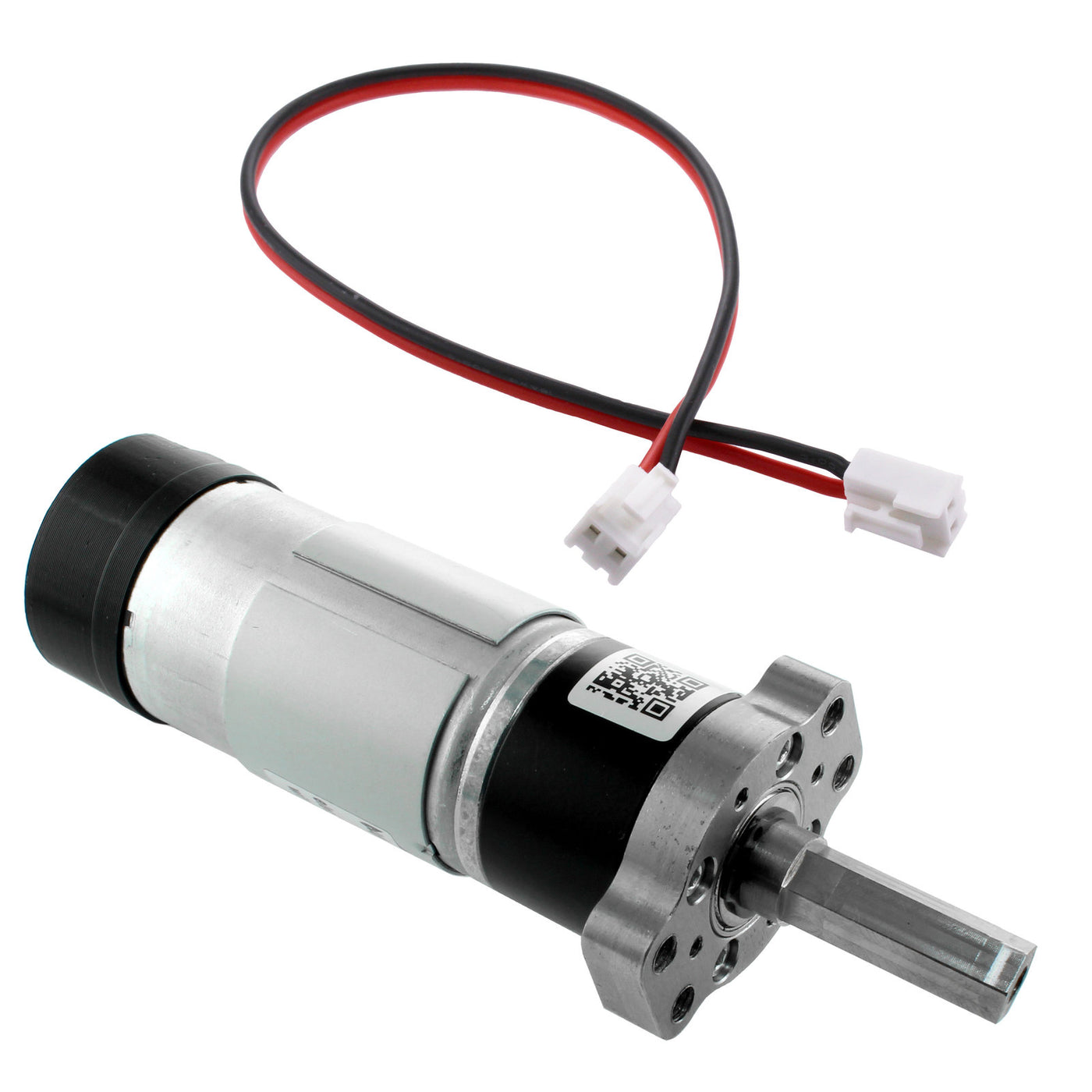

The NeveRest Hex Gearmotor (1:1, ~6600 RPM, 1 in. Shaft) (am-5550_0100_001) opens up new possibilities for FTC teams that require maximum RPM. With a 1:1 gear ratio, this motor transmits engine RPM directly to the shaft (~6600 RPM), making it ideal for shooter or suction applications.

Key Features:

• Direct Drive: No reduction gearing required, resulting in an output speed of approximately 6600 RPM.
• Hex Shaft: The 1" long output shaft features a 3/8" Hex profile and is centered within the housing. The end of the shaft features a 10-32 threaded hole for securing components.
• Removable Cable: This motor features a new removable power supply system. A 12" cable with a JST-VH-2 connector is included that connects directly to the REV Control Hub.
• Encoder: A built-in Hall Effect sensor provides 7 pulses per revolution (PPR) of output shaft.
• Compatibility: Mounting holes are completely compatible with the NeveRest Orbital series, making it easy to retrofit existing designs.

Important: The encoder cable is not included in the delivery and must be selected separately depending on the required length and controller type.
