NeveRest Hex Gearmotors 3.7 to 1 (~1784 RPM) 1 in.

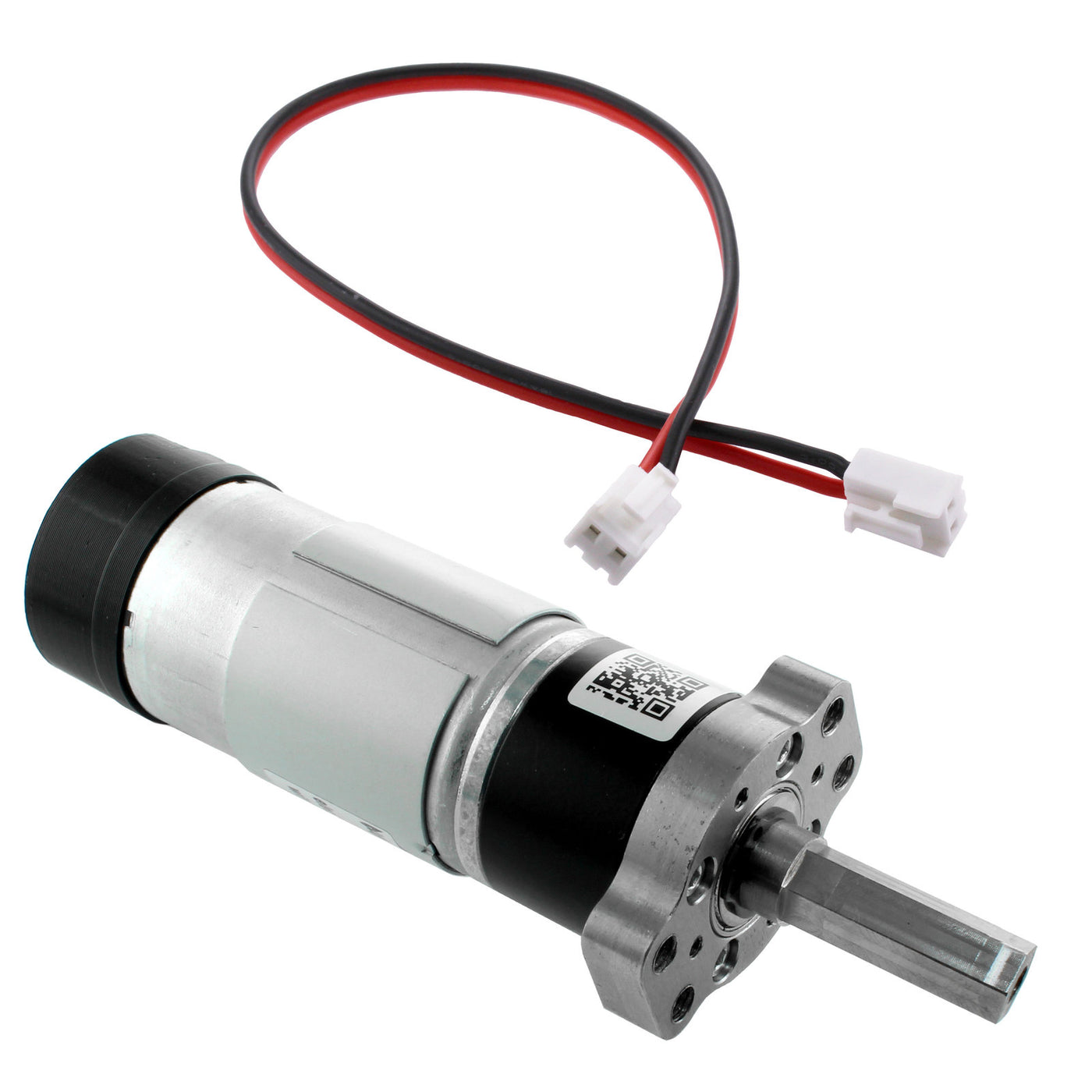

NeveRest Hex Gearmotor (3.7:1, ~1784 RPM, 1 in. Shaft) (am-5550_0100_004) is an excellent solution for mechanisms that require high rotation speed, such as shooters (starting devices) or suction systems (intakes).

Features of the model:

• High speed: A gearbox with a gear ratio of 3.7:1 provides an output shaft rotation speed of about 1784 rpm, which is an excellent balance between a direct drive and classic gearboxes.
• Convenient shaft: The 1 inch long output shaft has a 3/8" Hex profile. This eliminates slippage of wheels and gears. A 10-32 threaded hole is provided on the end of the shaft for locking.
• Centered design: The shaft is located precisely center of the gearbox face, and the mounting locations are fully compatible with the NeveRest Orbital series.
• Detachable Cable: The motor comes with a 12-inch detachable power cable with a JST-VH-2 connector that connects directly to the REV Control Hub.
• Built-in Encoder: The Hall sensor produces 25.9 pulses per revolution of the output shaft (7 PPR motor * 3.7), allowing you to control the rotation speed.

Important: The encoder connection cable is not included in the delivery set and must be selected individually.
