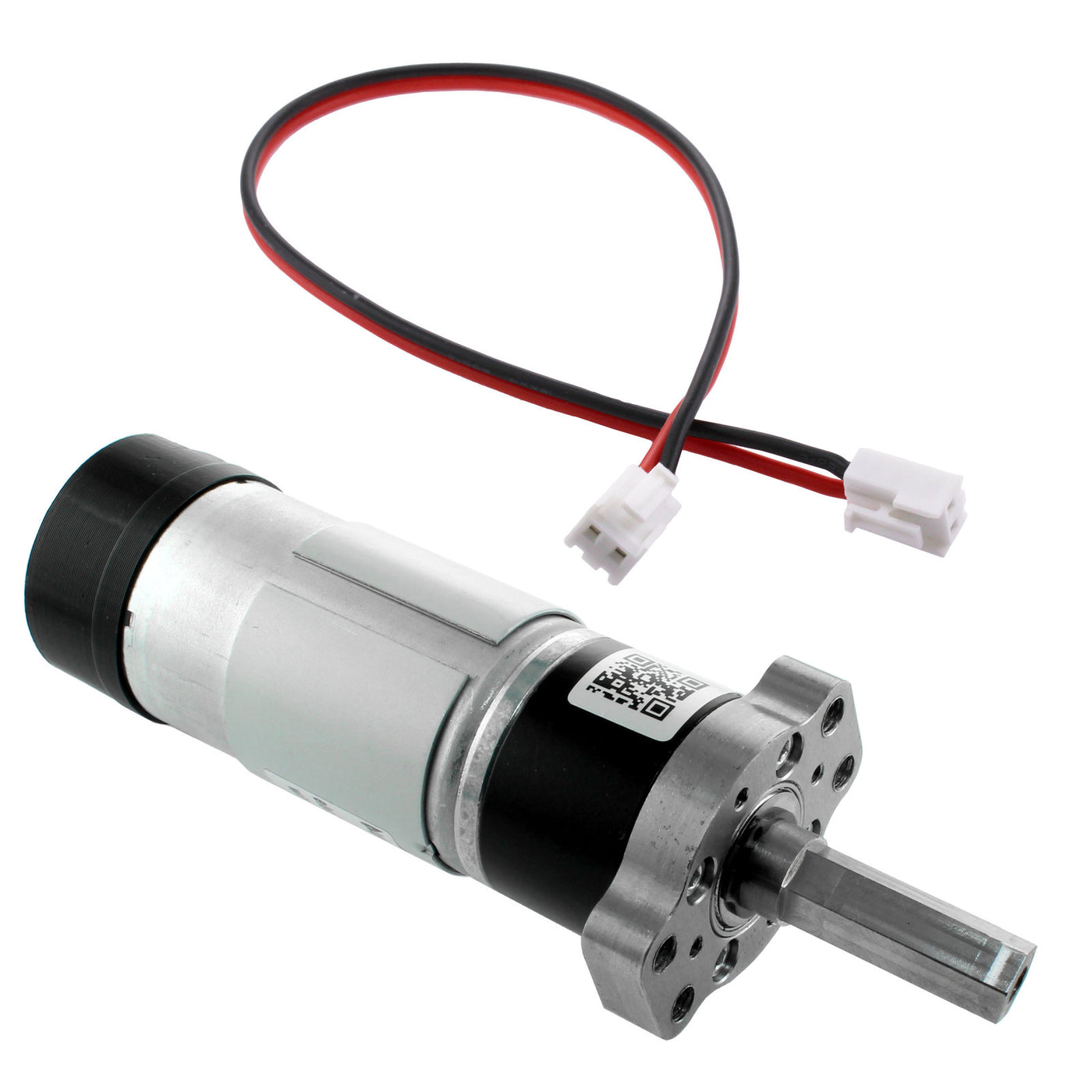

NeveRest Hex Gearmotors 263.7 to 1 (~25RPM) 1 in.

NeveRest Hex Gearmotor (263.7:1, ~25 RPM, 1 in. Shaft) (am-5550_0100_264) is the solution for situations where torque and position holding are more important than speed. At just 25 RPM, this motor is capable of handling the heaviest robotic components, such as heavy lifters or rotary mechanisms.

Model Features:

• Maximum Thrust: The 263.7:1 gear ratio produces tremendous thrust, allowing you to lift heavy loads and hold them with virtually no rollback.
• Hex Shaft: The 1" long output shaft has a 3/8" Hex profile. This eliminates slippage in joints under heavy loads. The end of the shaft has a 10-32 thread.
• Detachable Cable: The motor comes with a detachable 12" power cable (JST-VH-2 connector), making it easy to replace and service.
• Ultimate Accuracy: The built-in encoder outputs 1845.9 pulses per revolution of the output shaft (calculation: 7 PPR * 263.7), which ensures exceptional positioning accuracy.
• Compatibility: Mounting and dimensions comply with the Orbital series standard.

Important: The encoder connection cable is not included in the delivery set and must be purchased separately.
