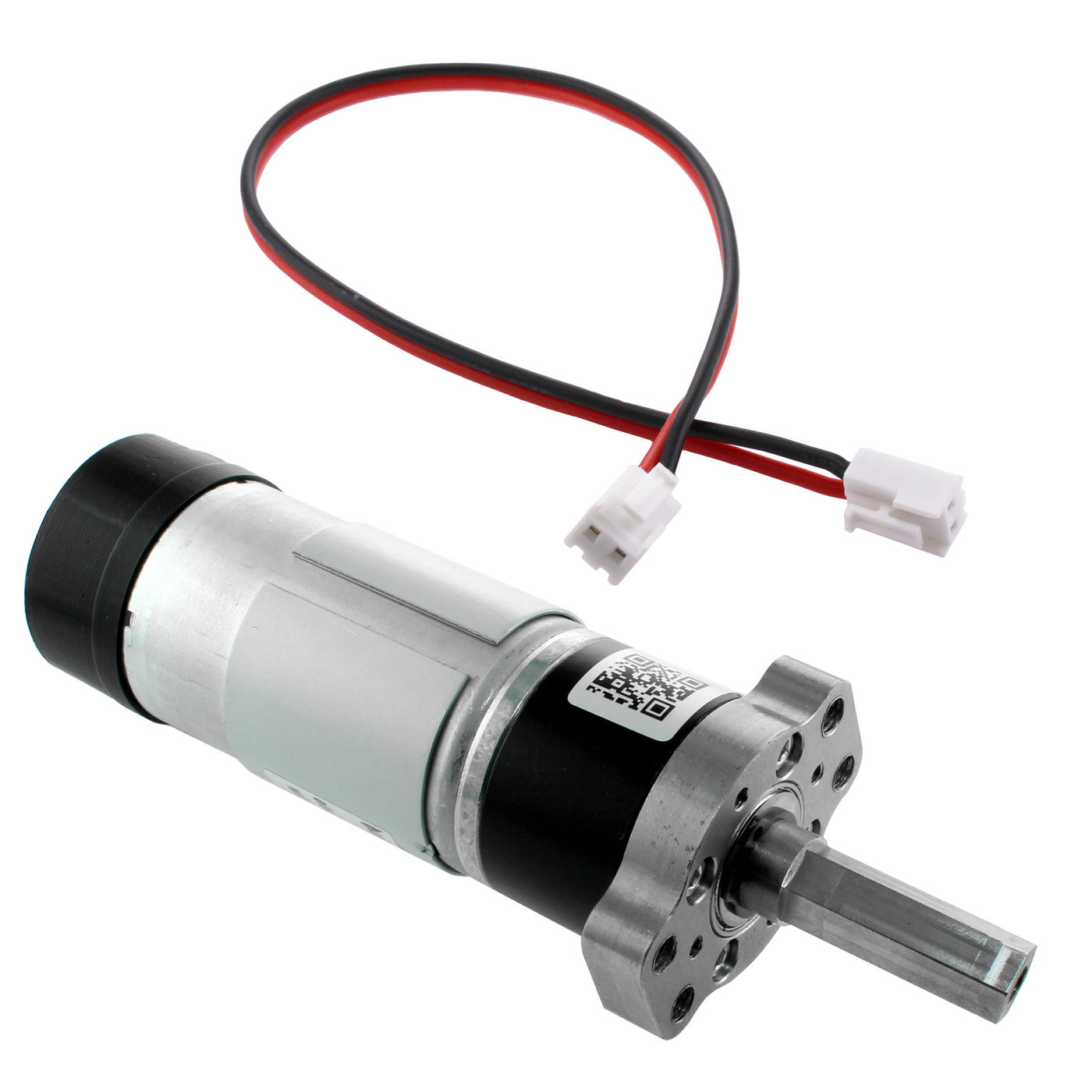

NeveRest Hex Gearmotors 263.7 to 1 (~25RPM) 2 in.

The NeveRest Hex Gearmotor (263.7:1, ~25 RPM, 2 in. Shaft) (am-5550_0200_264) is a specialized solution for applications requiring maximum torque at low speeds (around 25 RPM).

Features and Specifications:

• Maximum Thrust: The 263.7:1 gearbox generates tremendous torque, allowing the robot to lift heavy arms or hold them in position without backfiring.
• Extended Shaft: The 2 in. (51 mm) output shaft features a 3/8 in. Hex profile. This allows for the installation of wide cable drums or complex gear assemblies.
• Detachable Cable: The motor features a 12 in. detachable cable With a JST-VH-2 connector, which simplifies installation and wiring replacement.
• Highest accuracy: The built-in encoder provides a resolution of 1845.9 pulses per revolution of the output shaft, which provides exceptional positioning control accuracy.
• Reliability: The robust housing and steel gearbox gears are designed for high loads.

Important: The encoder connection cable is not included in the delivery set.
