NeveRest Hex Gearmotors 19.2 to 1 (~344 RPM) 3 in.

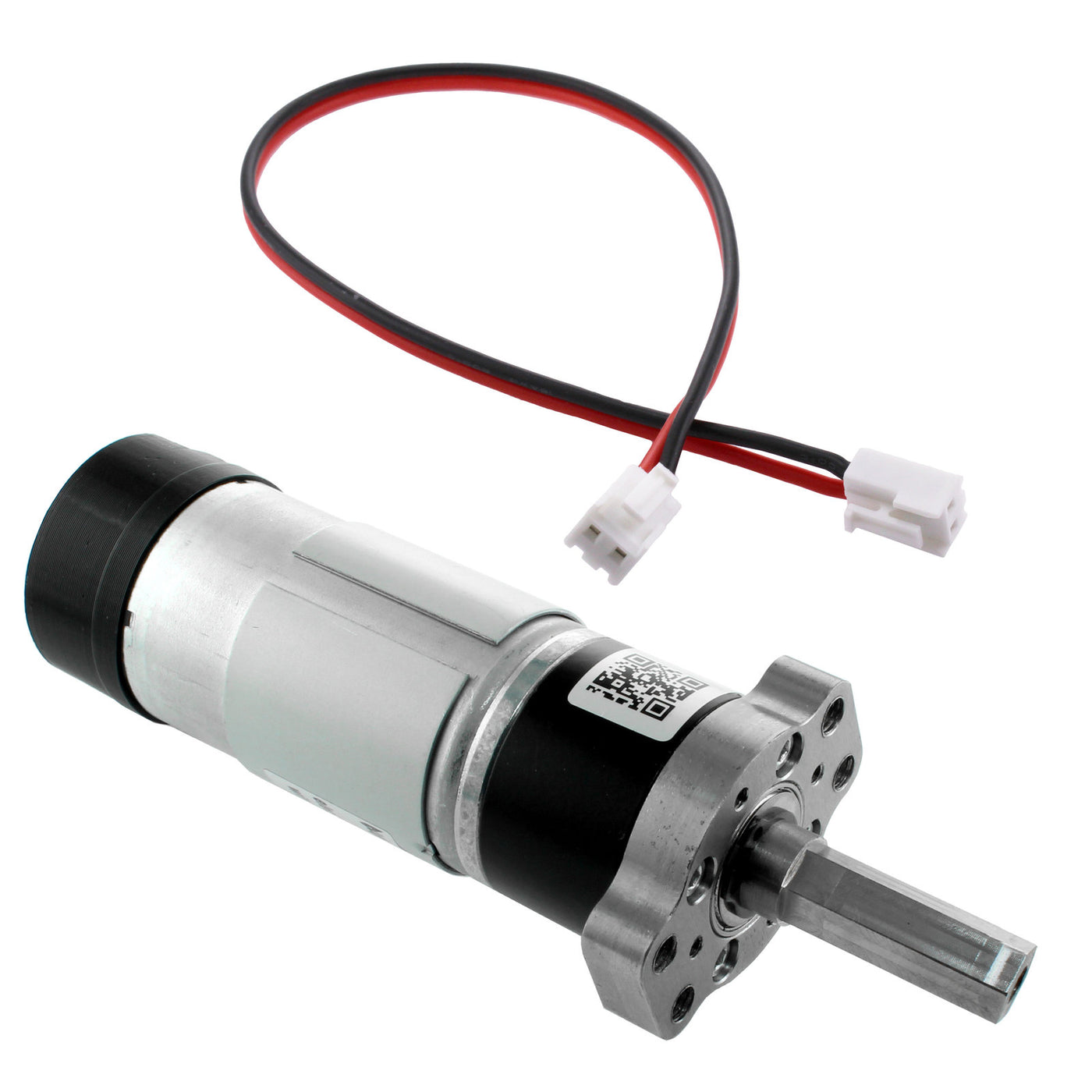

NeveRest Hex Gearmotor (19.2:1, ~344 RPM, 3 in. Shaft) (am-5550_0300_019) is the most popular drive option in the Hex series, now equipped with an extra-long shaft for implementing complex engineering solutions in FTC robotics.

Features and Specifications:

• Maximum Mounting Flexibility: The 3-inch (76 mm) 3/8" Hex profile shaft allows you to extend wheels or mechanisms significantly from the motor housing, as well as mount multiple components (such as a wheel and sprocket) on a single shaft.
• The Gold Standard in Performance: The 19.2:1 gear ratio produces a speed of 344 RPM, which is the perfect balance between movement speed and the power needed to control the robot.
• Detachable Power Cable: Included 12-inch cable with a JST-VH-2 connector. The detachable cable simplifies motor replacement and allows for custom-length cables.
• Built-in encoder system: The Hall sensor provides a resolution of 134.4 pulses per revolution of the output shaft, which guarantees high accuracy in the autonomous period.
• Compatibility and installation: The device is fully compatible with the Orbital series mounts. The end of the shaft has a 10-32 threaded hole for reliable axial fixation of parts.

Important: The encoder cable is not included in the delivery set and must be ordered separately, depending on the type of controller used.
