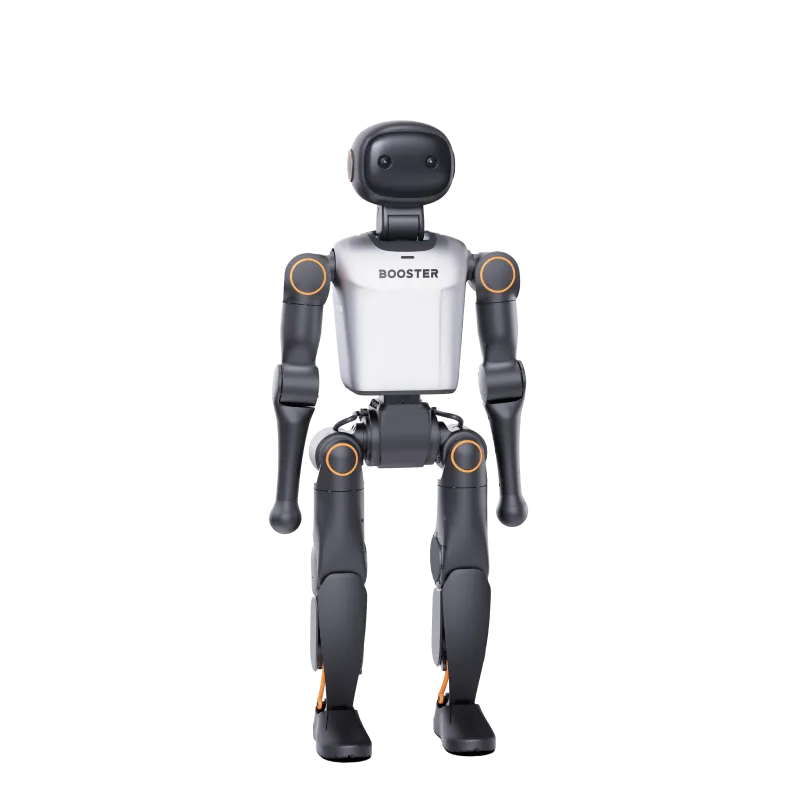

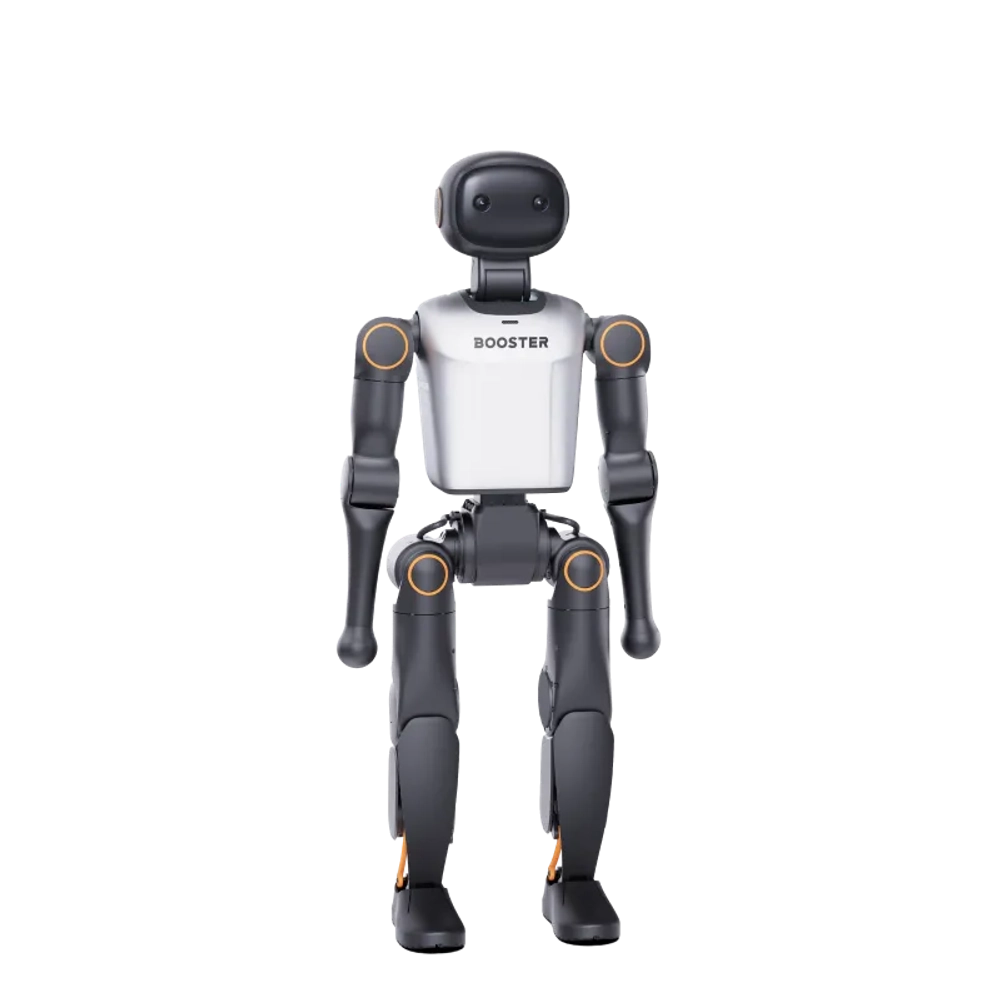

An introductory platform for embodied AI. A RoboCup 2025 KidSize champion model. Built-in Doubao LLM (free for 6 months). Equipped with the Booster GYM 2.0 framework.
Dimensions and weight:
- Height: ~95 cm
- Weight: ~19.5 kg
Degrees of freedom:
- Total: 22
- Legs: 6 (×2)
- Arms: 4 (×2)
- Head: 2
Range of joint motion:
- Hip: P-171°~126°, R-22°~89°, Y±59°
- Knee: 0°~127°
- Ankle: P-50°~20°, R±20°
Drives:
- Max. Peak Torque: 60 N m
- Encoder: Dual
Computing and Sensors:
- GPU: 48 TOPS (Dense)
- Camera: Stereo Depth
- IMU: 9-Axis
- Sound: 6-Microphone Array + Speaker
Other:
- Battery: 2 Ah
- Operating Time: 30 min (Walking 0.4 m/s)
- Wi-Fi: Supported
- Bluetooth 5.2: Supported
- Buttons: Power ×1, Interaction ×3
- Expansion Port: Gigabit Ethernet
- LLM Doubao: Included, Free 6 months
- Firmware update: supported
- Secondary development: supported
- Warranty: 3 months
