Description
| Parameter | Specification |

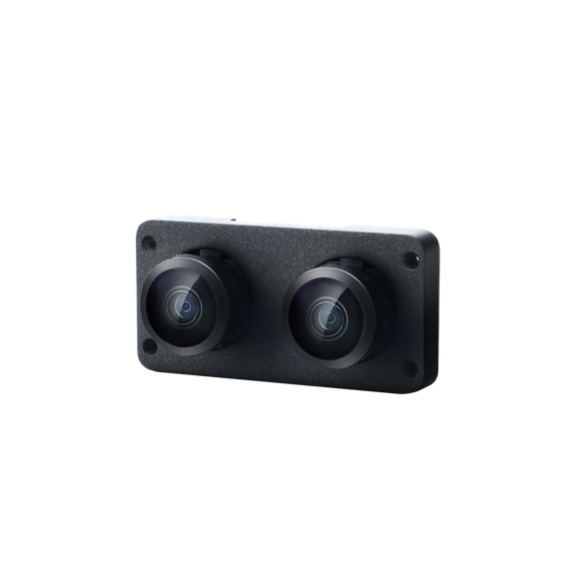

| Model | Unitree SV1-25 |
| Chip Resolution | 1280(H) × 800(V) = 1.0 MP |
| Optical Sensor Size | 1/4-inch (4.5 mm) |
| Shutter Type | Overall Color Situation Shutter |
| Field of View (FOV) | V = 220° (Y = 1.35 mm) H = 220° (Y = 1.80 mm) D = 220° (Y = 2.29 mm) |
| Lens Type | Prime Lens |
| Baseline (Stereo Distance) | 25 mm |
| Interface Type | USB 2.0 |
| Output Image Format | MJPEG / YUV2 |
| Supported Resolutions & Frame Rates | 1856×800 @ 30 FPS 928×400 @ 30 / 60 FPS |
| Power Supply Requirements | 5 V / 200 mA |
| Filter Cutoff Frequency | T = 50% at 650 ± 10 nm |
| Operating Temperature | -10℃ to 60℃ |
