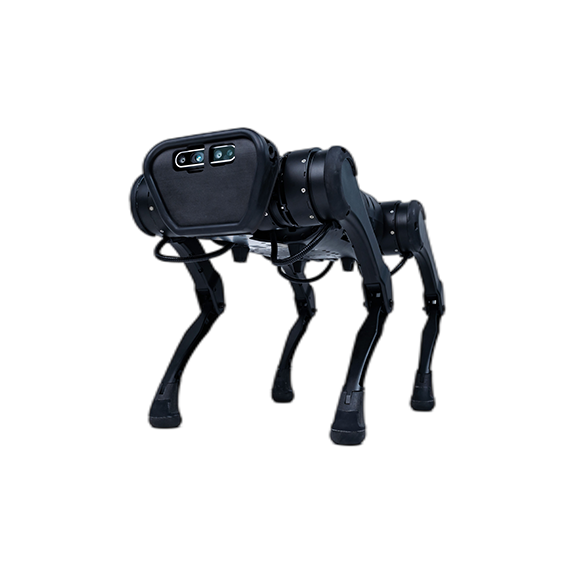

The Unitree A1 is a cutting-edge, agile quadruped robot designed for research, education, and advanced robotics applications. It combines compact design, powerful computing, and high-performance motors to deliver stable, responsive, and versatile locomotion across various terrains.
Mechanical Specifications:
-
Dimensions (Standing): 500×300×400 mm
-
Weight (With Battery): 12 kg
-
Payload Capacity: Up to 3–5 kg
-
Material: Aerospace-grade aluminum alloy + engineering plastic
Motion & Performance:
-
Max Walking Speed: Up to 3.3 m/s (≈11.88 km/h)
-
DOF (Degrees of Freedom): 12 (3 per leg)
-
Leg Motion Range:
-
Hip: ±39°
-
Thigh: +90° to –55°
-
Calf: +130° to –75°
-
Power System:
-
Battery: 3S 5000 mAh (18650 lithium-ion)
-
Runtime: 1–2.5 hours (depending on usage)
-
Charger: 16.8 V with intelligent charging support
-
Charging Time: Approx. 2 hours
Computing & Sensors:
-
Processor Options:
-
NVIDIA Jetson NX / Orin Nano / Orin NX
-
-
Open-source SDK: Supports Python, C++, ROS1/ROS2
-
IMU Sensor: 9-axis IMU with high-precision posture feedback
-
Cameras (optional):
-
Depth camera
-
Wide-angle RGB camera
-
RealSense D435i or LIDAR
-
Communication & Control:
-
Wi-Fi + Bluetooth Support
-
Remote Controller Included
-
App Support: Android / iOS
-
API Interface: Fully open, secondary development enabled
-
OTA (Over-the-Air) Firmware Updates: Supported
Additional Features:
-
Foot Force Sensors (optional)
-
Headlight (optional)
-
Voice Command Recognition (optional)
-
Follow Me Function (ISS)
-
Real-time trajectory planning & gait switching
Use Cases:
-
Robotics education
-
AI research & SLAM applications
-
Human–robot interaction
-
Entertainment & performance
-
Delivery robot base platform
